Inspection [12/2012 - ]: Procedure
- INSPECT DOOR CONTROL SWITCH ASSEMBLY
- Check the operation of the door control switch assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 1 (CLS) - 2 (E) Door control switch assembly not pushed 10 kΩ or higher Door control switch assembly pushed Below 1 Ω If the result is not as specified, replace the door control switch.

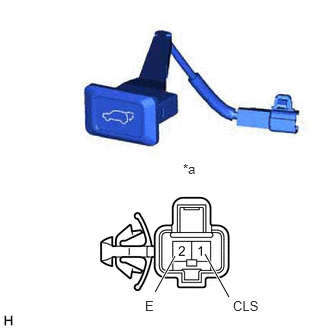

*a Component without harness connected
(Door Control Switch Assembly)
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the door control switch assembly.
