Removal [12/2012 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE HOOD TO FRONT FENDER SEAL RH

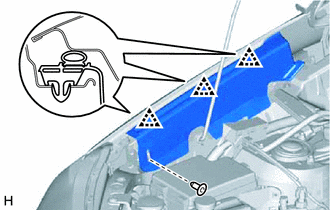

    1. Remove the clip.
      GTY363083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 clips and remove the hood to front fender seal RH.
  3. REMOVE HOOD TO FRONT FENDER SEAL LH

    HINT:

    Use the same procedure described for the RH side.

  4. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - ]

  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 11 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 11 [08/2016 - ]

  6. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 13 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 13 [08/2016 - ]

  7. REMOVE FUSE BOX OPENING COVER

    Refer to PROCEDURE - Step 8 [12/2012 - 08/2016] , or refer to PROCEDURE - Step 8 [08/2016 - ]

  8. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

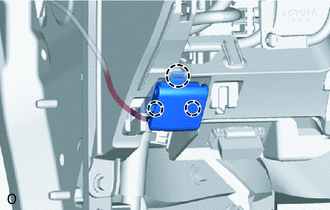

    1. Detach the 3 claws.
      GTY382116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.
      GTY367777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HOOD LOCK ASSEMBLY

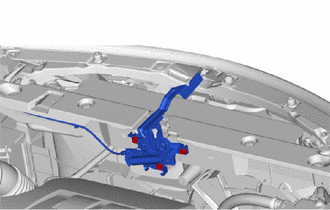

    1. GTY367446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 bolts.

    2. Disconnect the hood lock control cable assembly and remove the hood lock assembly.
      GTY382193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie a string to the end of the hood lock control cable assembly as shown in the illustration.
      GTY377571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 String

      HINT:

      Use a length of string long enough to pass through the engine compartment.

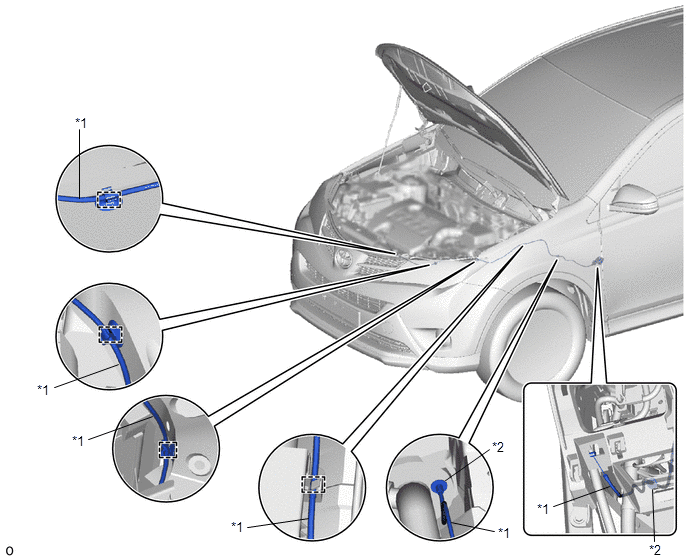

    2. Detach each clamp, and then pull out the hood lock control cable assembly from the vehicle body.
    3. Untie the string from the hood lock control cable assembly.
      GTY371762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable *2 Stopper
