Disassembly [12/2012 - 10/2015]: Procedure

  1. REMOVE TAILLIGHT SOCKET

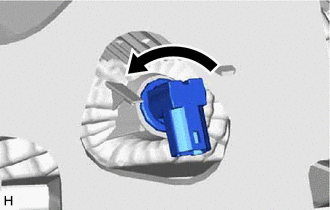

    GTY363616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the taillight socket with the taillight bulb in the direction indicated by the arrow to remove them as a unit.
  2. REMOVE TAILLIGHT BULB
    GTY363605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the taillight bulb from the taillight socket.
  3. REMOVE BACK UP LIGHT SOCKET

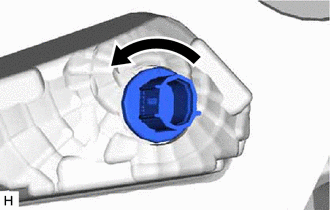

    GTY363620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the back up light socket with the back up light bulb in the direction indicated by the arrow to remove them as a unit.
  4. REMOVE BACK UP LIGHT BULB
    GTY363594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the back up light bulb from the back up light socket.
  5. REMOVE REAR LIGHT GASKET LH

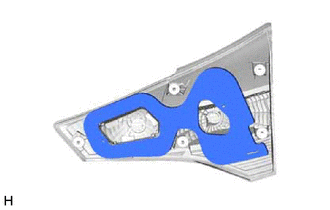

    GTY363592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear light gasket LH from the rear light lens and body LH.
