Installation [12/2012 - 08/2016]: Procedure

INSTALL REAR SEAT INNER BELT ASSEMBLY RH
1. Install the rear seat inner belt assembly RH with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH

Install the rear center seat lap type belt assembly RH with the bolt.

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:

The anchor part of the rear center seat lap type belt assembly RH must not overlap the protruding part.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

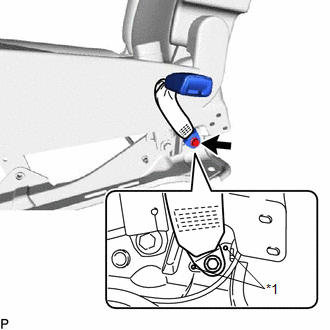

*1	Protruding Part

INSTALL REAR SEAT ASSEMBLY RH
Refer to INSTALLATION [12/2012 - 08/2016]
INSTALL REAR SEAT INNER BELT ASSEMBLY LH
1. Install the rear seat inner belt assembly LH with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

INSTALL REAR CENTER SEAT LAP TYPE BELT ASSEMBLY LH

Pass the rear center seat lap type belt assembly LH through the rubber band of the separate type rear seat cushion cover.

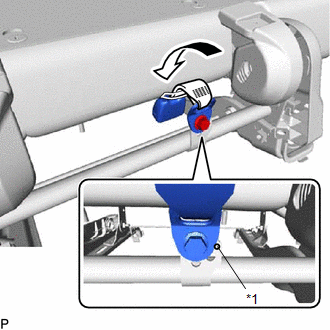

*1	Protruding Part

Install the rear center seat lap type belt assembly LH with the bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTE:
The anchor part of the rear center seat lap type belt assembly LH must not overlap the protruding part.
