Components [12/2012 - ]: Illustration

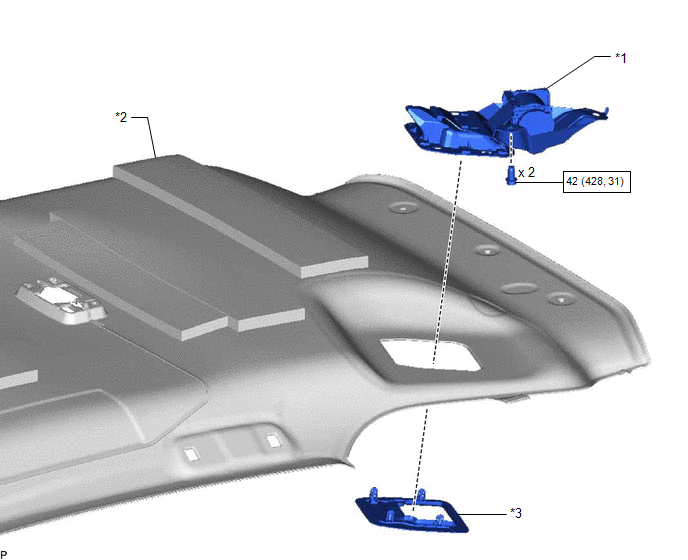

Fig 1: Rear Center Seat Outer Belt Assembly Components With Torque Specifications [12/2012 - ]
GTY381505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH *2 ROOF HEADLINING ASSEMBLY
*3 SHOULDER BELT ANCHOR COVER RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
