Components [12/2012 - 08/2016]: Illustration

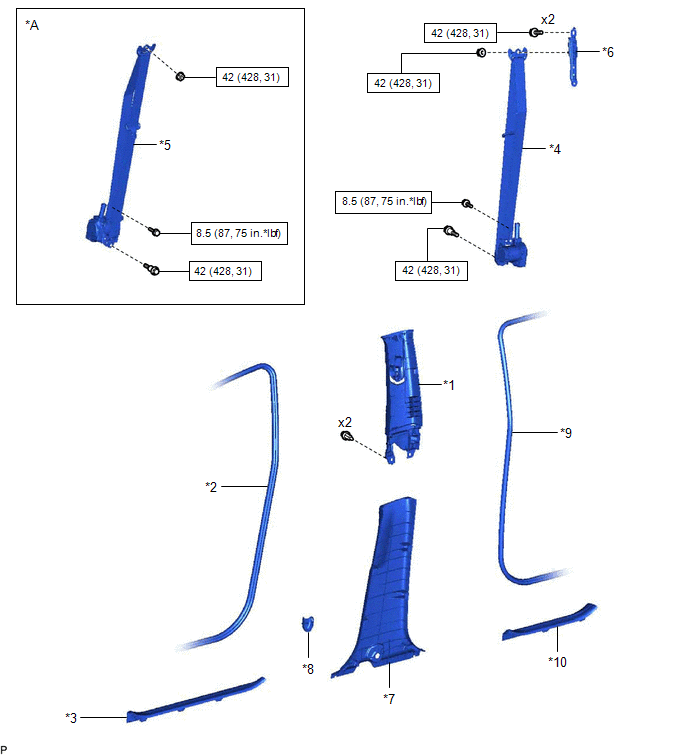

Fig 1: Front Seat Outer Belt Assembly With Pre-Tensioner Components With Torque Specifications [12/2012 - 08/2016]
| Callout | Description | Callout | Description |
| *A | for Front Passenger Seat Belt with Selectable Force Limiter | - | - |
| *1 | CENTER PILLAR GARNISH LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *5 | FRONT SEAT OUTER BELT ASSEMBLY RH | *6 | FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY |
| *7 | LOWER CENTER PILLAR GARNISH LH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
