Disassembly [08/2014 - ]: Procedure

1. Using SST, remove the transaxle case oil seal RH (inner) from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09308-00010

1. Put matchmarks on the front differential ring gear and front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the 12 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a plastic-faced hammer, tap on the front differential ring gear to remove it from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1

See step  2

1. Secure the front differential case in a vise between aluminum plates.
   NOTE:

   Do not overtighten the vise.

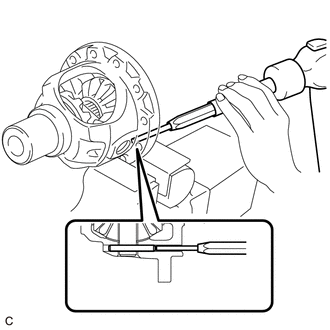

2. Using a 5 mm pin punch and hammer, remove the front differential pinion shaft straight pin from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Before removing the front differential pinion shaft straight pin, unstake it with a pin punch.

1. Remove the front No. 1 differential pinion shaft from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  3

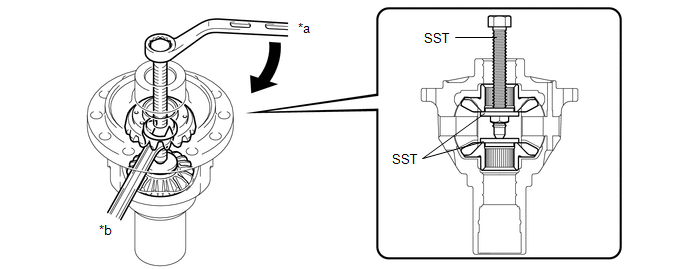

1. Set SST as shown in the illustration and tighten it.
   • SST: 09528-52010
     1. 09528-05010
     2. 09953-05010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   *b

   Hold

   NOTE:

   Do not overtighten SST, as doing so will damage the differential side gear, conical spring washer, front No. 1 differential side gear thrust washer and front differential case.

   HINT:

   • Tighten SST until there is a clearance between the front differential pinions and differential side gears.
   • When removing the front differential pinions, do not overtighten SST, as it is necessary to rotate the differential side gears.

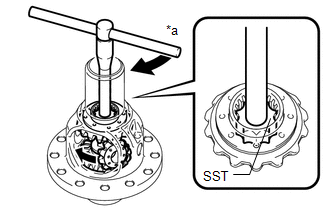

2. Install SST as shown in the illustration, rotate the differential side gear, and then remove the 2 front differential pinions and 2 front differential pinion thrust washers from the front differential case.
   • SST: 09528-52010
     1. 09528-05030

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   NOTE:

   Do not drop the front differential pinions and front differential pinion thrust washers.

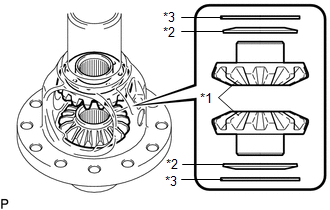

3. Remove SST from the front differential case, and then remove the 2 differential side gears, 2 front No. 1 differential side gear thrust washers and 2 conical spring washers from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Differential Side Gear
   *2	Conical Spring Washer
   *3	Front No. 1 Differential Side Gear Thrust Washer
