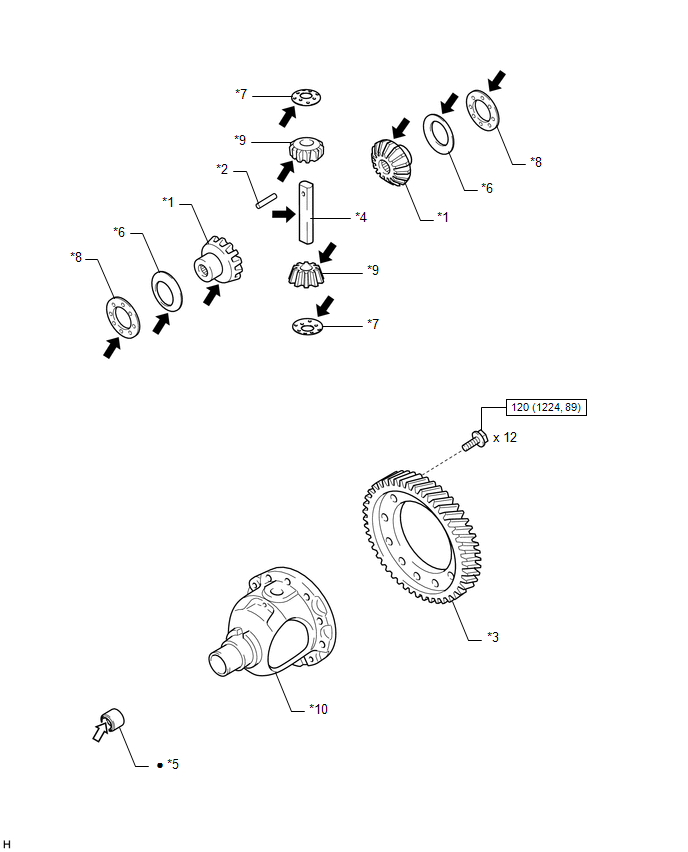

Components [08/2014 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | DIFFERENTIAL SIDE GEAR | *2 | FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN |
| *3 | FRONT DIFFERENTIAL RING GEAR | *4 | FRONT NO. 1 DIFFERENTIAL PINION SHAFT |
| *5 | TRANSAXLE CASE OIL SEAL RH (INNER) | *6 | CONICAL SPRING WASHER |
| *7 | FRONT DIFFERENTIAL PINION THRUST WASHER | *8 | FRONT NO. 1 DIFFERENTIAL SIDE GEAR THRUST WASHER |
| *9 | FRONT DIFFERENTIAL PINION | *10 | DIFFERENTIAL CASE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease |
