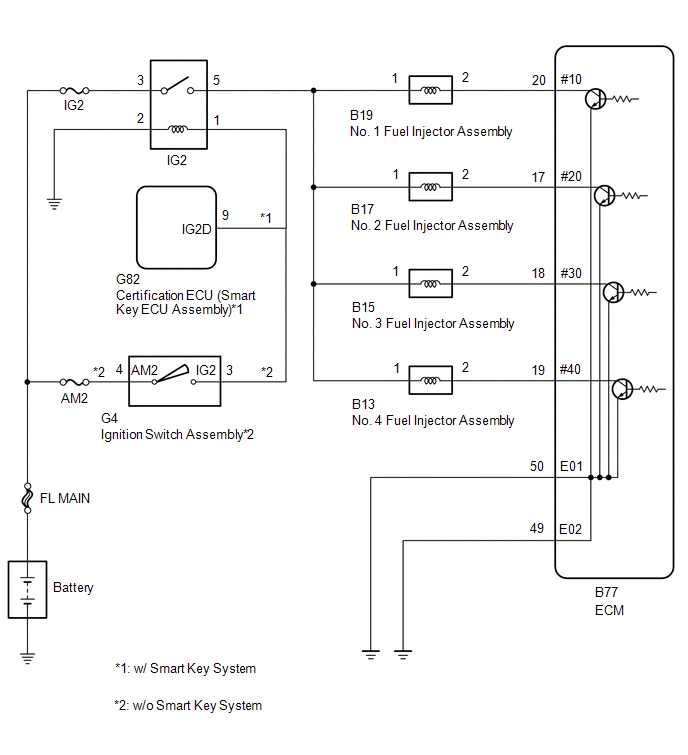

Fuel Injector Circuit [12/2012 - 08/2017]: Wiring Diagram

GTY366344

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
