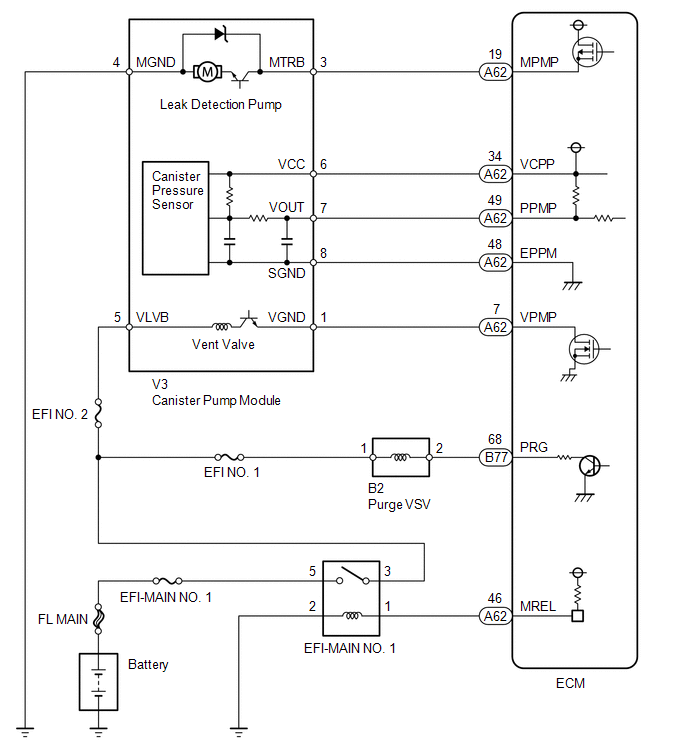

DTC P0451-P0453; Evaporative Emission Control System Pressure Sensor Range / Performance [12/2012 - ]: Wiring Diagram

GTY384071

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
