Removal [12/2012 - ]: Procedure

  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2012 - 10/2015] Refer to REMOVAL [10/2015 - ]

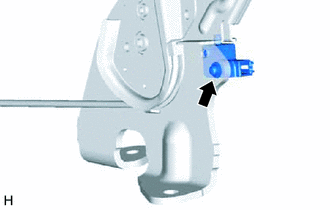

  2. REMOVE PARKING BRAKE SWITCH ASSEMBLY
    1. Disconnect the parking brake switch connector.
    2. Remove the screw and parking brake switch assembly.
      GTY381519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
