Installation [12/2012 - ]: Procedure

See step  1

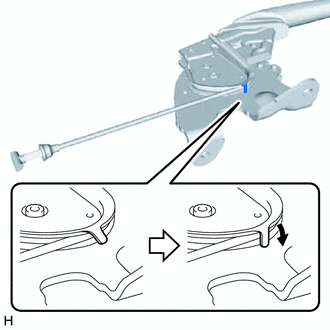

1. Pass the No. 1 parking brake cable assembly through the parking brake lever.
2. Bend the parking brake lever claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the parking brake lever (with the No. 1 parking brake cable) with the 2 bolts.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

2. Connect the No. 1 parking brake cable to the parking brake equalizer.
3. Temporarily install the No. 1 cable adjusting nut and lock nut.
4. Connect the parking brake switch connector.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 4

1. Install the No. 2 console box mounting bracket with the 4 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

Refer to INSTALLATION [12/2012 - 10/2015] Refer to INSTALLATION [10/2015 - ]
