Reassembly [12/2012 - ]: Procedure

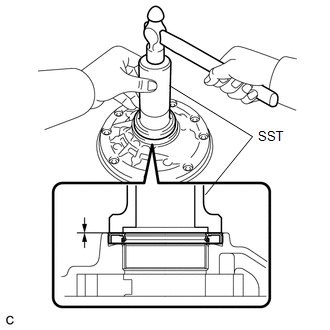

1. Using SST and a hammer, install a new front oil pump oil seal to the front oil pump body sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09350-32014
     1. 09351-32140

   Oil seal driven in depth

   -0.25 to 0.25 mm (-0.00984 to 0.00984 in.)

2. Coat the lip of the front oil pump oil seal with MP grease.

1. Coat a new front oil pump body O-ring with ATF and install it to the front oil pump body sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Ensure that the O-ring is not twisted.

1. Coat the front oil pump driven gear with ATF and install it to the front oil pump body sub-assembly with the marked side up.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the front oil pump drive gear with ATF, and install it to the front oil pump body sub-assembly with the marked side up.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

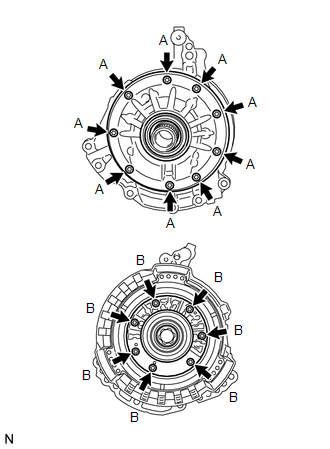

1. Align each knock pin of the stator shaft assembly with the holes in the front oil pump body sub-assembly and install the stator shaft assembly to the front oil pump body sub-assembly with the 16 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   BOLT LENGTH



   Bolt	Length
   A	14 mm (0.551 in.)
   B	26 mm (1.02 in.)

2. Using a T30 "TORX" socket wrench, tighten the 16 bolts.

   Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

See step  1
