Reassembly [08/2014 - ]: Procedure

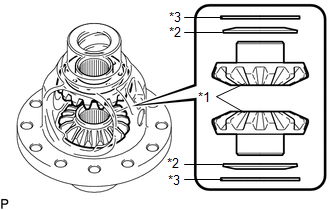

1. Coat the 2 differential side gears, 2 front No. 1 differential side gear thrust washers and 2 conical spring washers with Toyota Genuine ATF WS.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Differential Side Gear
   *2	Conical Spring Washer
   *3	Front No. 1 Differential Side Gear Thrust Washer
   	Toyota Genuine ATF WS

2. Install the 2 differential side gears, 2 front No. 1 differential side gear thrust washers and 2 conical spring washers to the differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Differential Side Gear
   *2	Conical Spring Washer
   *3	Front No. 1 Differential Side Gear Thrust Washer

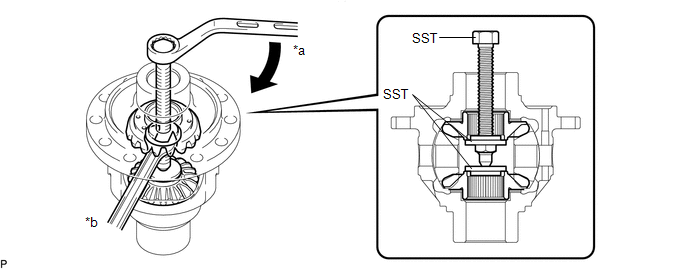

3. Set SST as shown in the illustration and tighten it.
   • SST: 09528-52010
     1. 09528-05010
     2. 09953-05010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   *b

   Hold

   NOTE:

   Do not overtighten SST, as doing so will damage the differential side gears, conical spring washers, front No. 1 differential side gear thrust washers and differential case.

   HINT:

   • Tighten SST to create the necessary clearance to install the front differential pinions.
   • When installing the front differential pinions, do not overtighten SST, as it is necessary to rotate the differential side gears.
4. Coat the 2 front differential pinions and 2 front differential pinion thrust washers with Toyota Genuine ATF WS.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Toyota Genuine ATF WS

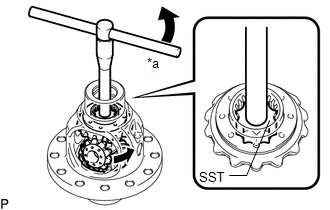

5. Using SST as shown in the illustration, rotate the differential side gear and install the 2 front differential pinions and 2 front differential pinion thrust washers.
   • SST: 09528-52010
     1. 09528-05030

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   WARNING:

   Be careful not to catch your fingers between the front differential pinions and differential case.

   NOTE:

   Do not drop the front differential pinions and front differential pinion thrust washers.

See INSPECTION [12/2012 - 08/2017] step  2 or INSPECTION [08/2017 - ] step  2

1. Coat the front No. 1 differential pinion shaft with Toyota Genuine ATF WS.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Toyota Genuine ATF WS

2. Install the front No. 1 differential pinion shaft to the differential case so that the hole for the front differential pinion shaft straight pin is aligned with the hole in the differential case.

See INSPECTION [12/2012 - 08/2017] step  1 or INSPECTION [08/2017 - ] step  1

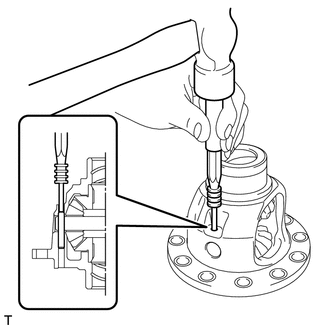

1. Using a 5 mm pin punch and hammer, install the front differential pinion shaft straight pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Align the holes in the differential case and front No. 1 differential pinion shaft and install the front differential pinion shaft straight pin.

2. Using a chisel and hammer, stake the differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194 to 230°F).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not heat the front differential ring gear to more than 110°C (230°F).

2. Clean the contact surface of the differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

3. Align the matchmarks, set the front differential ring gear to the differential case.
4. Install and tighten the 12 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

   NOTE:

   • Tighten the bolts after the front differential ring gear has cooled down sufficiently.
   • Tighten the bolts evenly in a diagonal pattern using several steps.
