Parts Location [12/2012 - 10/2015]: Illustration
WARNING: This page is about a different variant/trim than selected.

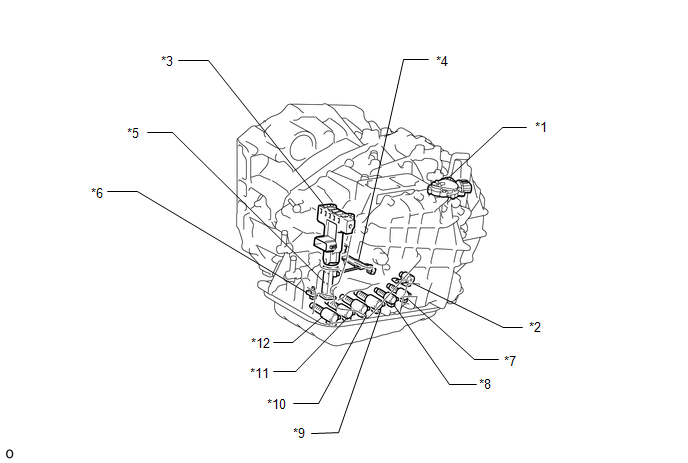

| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | SHIFT SOLENOID VALVE SL |
| *3 | WIRING HARNESS CONNECTOR | *4 | TRANSMISSION REVOLUTION SENSOR - SPEED SENSOR NT - SPEED SENSOR NC |
| *5 | TRANSMISSION WIRE | *6 | ATF TEMPERATURE SENSOR |
| *7 | SHIFT SOLENOID VALVE SLT | *8 | SHIFT SOLENOID VALVE SLU |
| *9 | SHIFT SOLENOID VALVE SL2 | *10 | SHIFT SOLENOID VALVE SL1 |
| *11 | SHIFT SOLENOID VALVE SL3 | *12 | SHIFT SOLENOID VALVE SL4 |

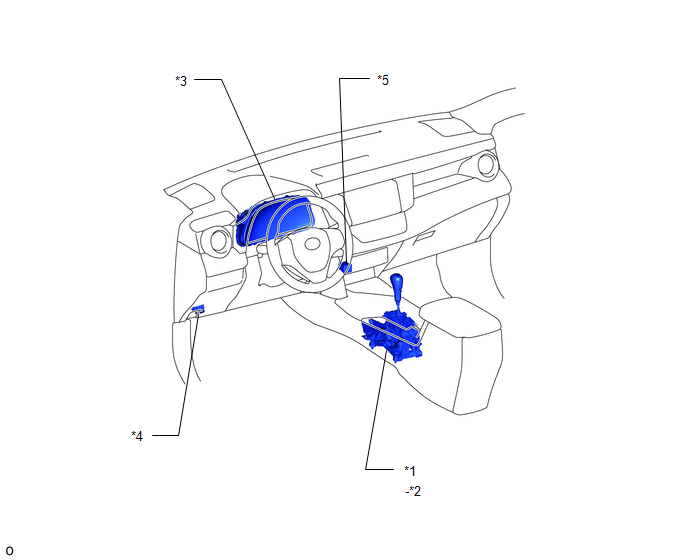

| *1 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *2 | TRANSMISSION CONTROL SWITCH |
| *3 | COMBINATION METER ASSEMBLY | *4 | DLC3 |
| *5 | COMBINATION SWITCH ASSEMBLY | - | - |
