Components [12/2012 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

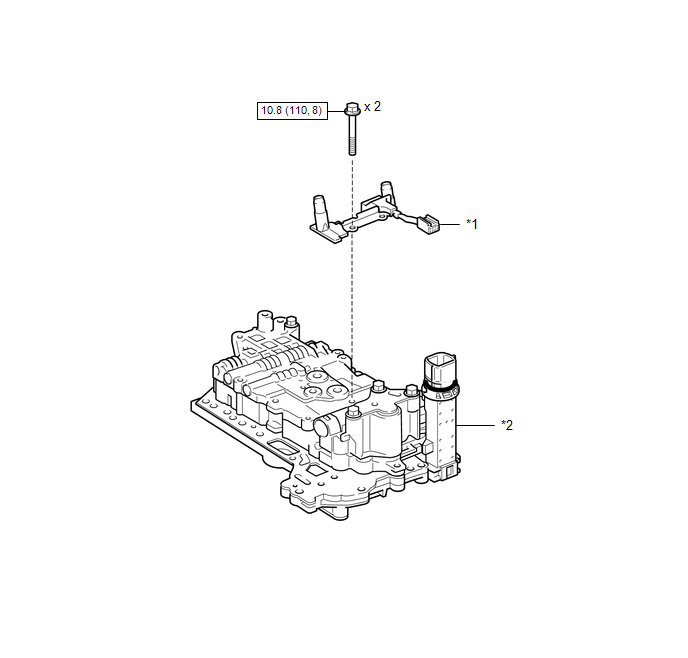

Fig 1: Speed Sensor Replacement Components With Torque Specifications
GTY363285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR *2 TRANSMISSION VALVE BODY ASSEMBLY
Specified torque: N*m (kgf*cm, ft.*lbf) - -
