Installation [10/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION SHIFT SWITCH ASSEMBLY
    1. Connect the 2 connectors to the 2 transmission shift switch assemblies.

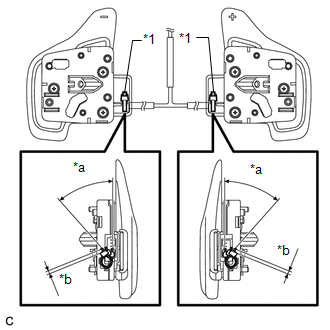

    2. Install 2 new cable ties as shown in the illustration.
      GTY592678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cable Tie
      *a 0 to 40°
      *b 1 to 3 mm (0.0394 to 0.118 in.)
    3. Attach the 6 guides to install the No. 1 switch wire.
    4. Attach the 4 pins and install the 2 transmission shift switch assemblies to the steering wheel boss lower cover.
  2. INSTALL STEERING WHEEL BOSS LOWER COVER

    Refer to INSTALLATION [10/2015 - ]
