INSPECT SHIFT LEVER ASSEMBLY (w/o Smart Key System)

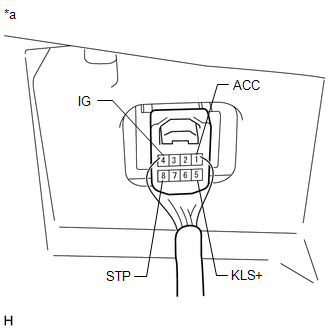

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
1 (ACC) - Body ground	Ignition switch ON	11 to 14 V
	Ignition switch ACC	11 to 14 V
	Ignition switch off	Below 1 V
8 (STP) - Body ground	Brake pedal depressed	11 to 14 V
8 (STP) - Body ground	Brake pedal released	Below 1 V
5 (KLS+) - Body ground	Ignition switch ACC and shift lever in P	Below 1 V
5 (KLS+) - Body ground	Ignition switch ACC and shift lever except in P	11 to 14 V
4 (IG) - Body - ground	Ignition switch ON	11 to 14 V
4 (IG) - Body - ground	Ignition switch off	Below 1 V

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Floor Shift Lever Assembly)

HINT:

Do not disconnect the shift lever assembly connector.

If the result is not as specified, replace the shift lever assembly.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
7 (E) - Body ground	Always	Below 1 Ω

HINT:

Do not disconnect the shift lever assembly connector.

If the result is not as specified, replace the shift lever assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Floor Shift Lever Assembly)

INSPECT SHIFT LEVER ASSEMBLY (w/ Smart Key System)

Measure the voltage according to the value(s) in the table below.

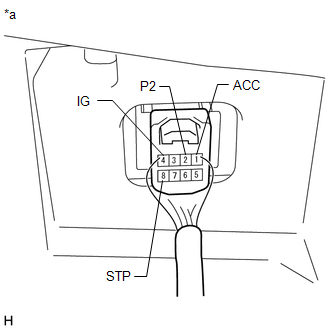

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Floor Shift Lever Assembly)

Standard Voltage

Tester Connection	Condition	Specified Condition
1 (ACC) - Body ground	Engine switch on (IG)	11 to 14 V
	Engine switch on (ACC)	11 to 14 V
	Engine switch off	Below 1 V
8 (STP) - Body ground	Brake pedal depressed	11 to 14 V
8 (STP) - Body ground	Brake pedal released	Below 1 V
2 (P2) - Body ground	Engine switch on (ACC) and shift lever except in P	Below 1 V
2 (P2) - Body ground	Engine switch on (ACC) and shift lever in P	11 to 14 V
4 (IG) - Body - ground	Engine switch on (IG)	11 to 14 V
4 (IG) - Body - ground	Engine switch off	Below 1 V

HINT:

Do not disconnect the shift lever assembly connector.

If the result is not as specified, replace the shift lever assembly.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
7 (E) - Body ground	Always	Below 1 Ω

HINT:

Do not disconnect the shift lever assembly connector.

If the result is not as specified, replace the shift lever assembly.

*a	Component with harness connected (Floor Shift Lever Assembly)

INSPECT TRANSMISSION CONTROL SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
4 (IG) - 5 (S)	Shift lever in M, "+" or "-"	Below 1 Ω
3 (SFTU) - 2 (E)	Shift lever held in "+" (Up-shift)	Below 1 Ω
1 (SFTD) - 2 (E)	Shift lever held in "-" (Down-shift)	Below 1 Ω
4 (IG) - 5 (S)	Shift lever not in M, "+" or "-"	10 kΩ or higher
3 (SFTU) - 2 (E)	Shift lever in M)	10 kΩ or higher
1 (SFTD) - 2 (E)	Shift lever in M	10 kΩ or higher

Fig 1: Transmission Control Switch Connector End View

*a	Component without harness connected (Transmission control switch)

If the result is not as specified, replace the shift lever assembly.
