Components [10/2015 - 08/2016]: Illustration

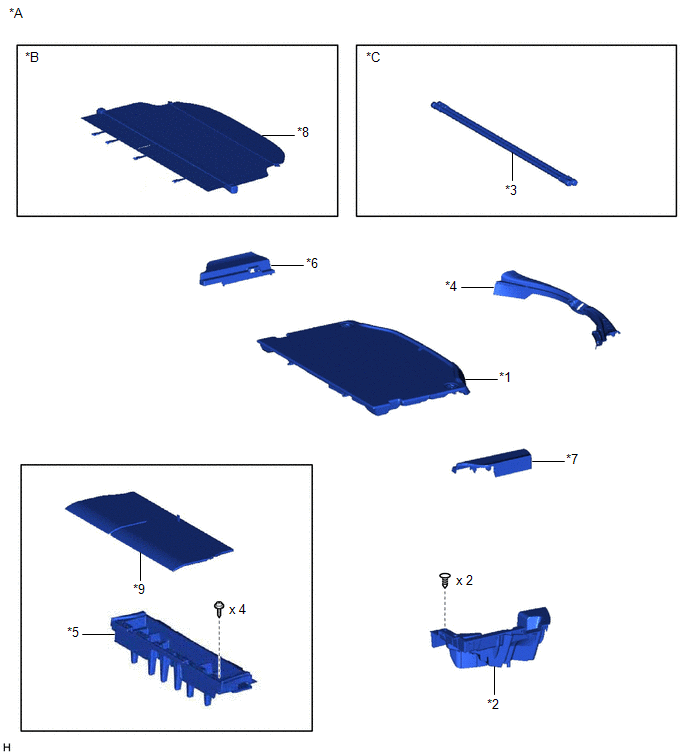

| *A | for Compact Spare Tire | *B | w/ Tonneau Cover |
| *C | w/ Partition Net | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY | *4 | REAR FLOOR FINISH PLATE |
| *5 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *6 | REAR NO. 2 FLOOR BOARD |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | TONNEAU COVER ASSEMBLY |
| *9 | REAR NO. 1 FLOOR BOARD | - | - |

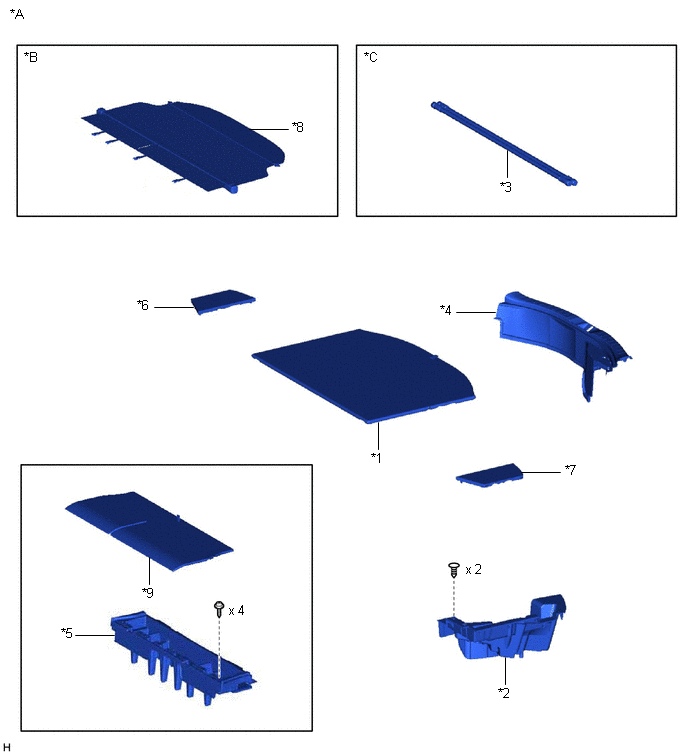

| *A | for Full Size Spare Tire | *B | w/ Tonneau Cover |
| *C | w/ Partition Net | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY | *4 | REAR DECK TRIM COVER |
| *5 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *6 | REAR NO. 2 FLOOR BOARD |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | TONNEAU COVER ASSEMBLY |
| *9 | REAR NO. 1 FLOOR BOARD | - | - |

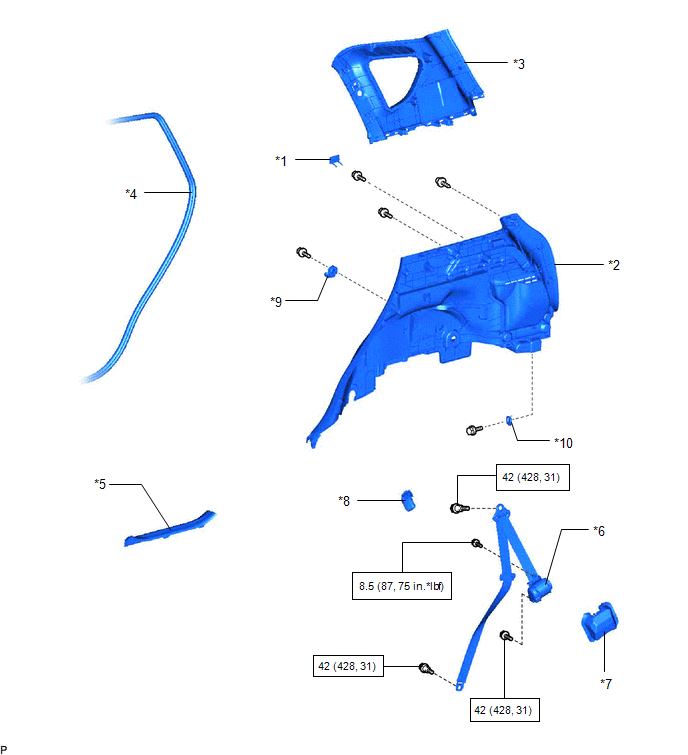

Fig 1: Rear Seat Outer Belt Assembly Components With Torque Specifications [10/2015 - 08/2016] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | DECK TRIM SERVICE HOLE COVER | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | INNER ROOF SIDE GARNISH ASSEMBLY LH | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *5 | REAR DOOR SCUFF PLATE LH | *6 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH |
| *7 | REAR SEAT BELT RETRACTOR COVER LH | *8 | SEAT BELT ANCHOR COVER CAP |
| *9 | TETHER ANCHOR SET BRACKET COVER | *10 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
