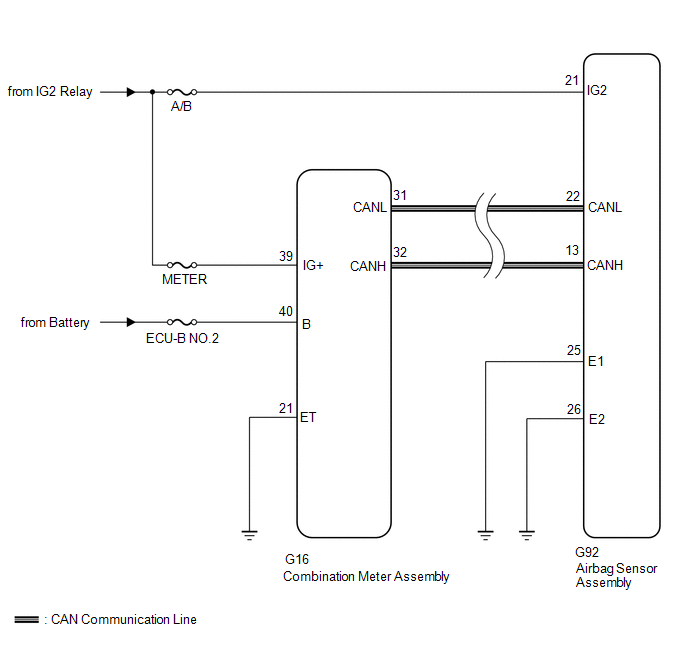

SRS Warning Light Remains ON [12/2012 - ]: Wiring Diagram

GTY377972

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
