Components [12/2012 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

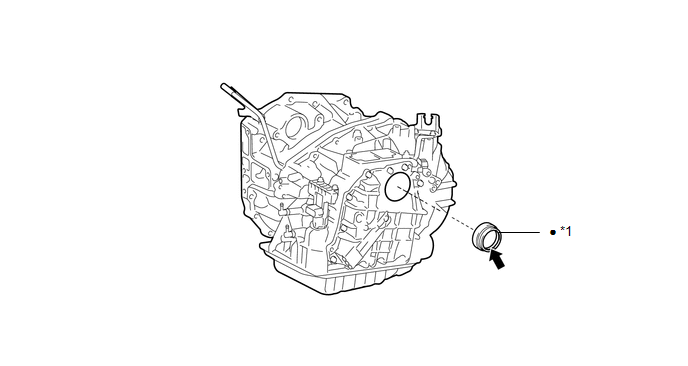

GTY366846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSAXLE CASE OIL SEAL LH -
• Non-reusable part MP grease
