Components [11/2013 - 08/2016]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | REAR ENGINE MOUNTING BRACKET |
| *3 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | *4 | TRANSFER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324 | * | Precoated part |
| *1 | NO. 1 TRANSFER CASE COVER | *2 | NO. 1 TRANSFER CASE PLUG |
| *3 | RING GEAR MOUNTING CASE BEARING LH | *4 | RING GEAR MOUNTING CASE BEARING RH |
| *5 | SHAFT SNAP RING | *6 | TRANSFER CASE OIL SEAL RH |
| *7 | TRANSFER RING GEAR | *8 | TRANSFER RING GEAR MOUNTING CASE |
| *9 | GASKET | *10 | NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER |
| *11 | NO. 1 RING GEAR MOUNTING CASE WASHER | *12 | TRANSFER CASE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| *A | w/ Washer | - | - |

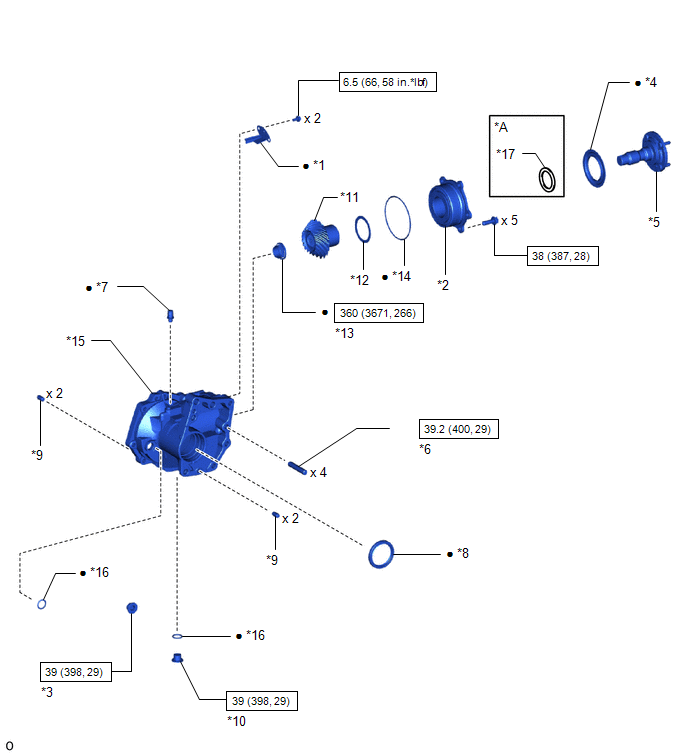

| *1 | BREATHER OIL DEFLECTOR | *2 | FRONT TRANSFER DRIVEN PINION BEARING |
| *3 | NO. 2 TRANSFER CASE PLUG | *4 | REAR TRANSFER OUTPUT SHAFT DUST DEFLECTOR |
| *5 | REAR TRANSFER OUTPUT SHAFT SUB-ASSEMBLY | *6 | TRANSFER AND TRANSAXLE SETTING STUD BOLT |
| *7 | TRANSFER CASE BREATHER PLUG | *8 | TRANSFER CASE OIL SEAL |
| *9 | TRANSFER CASE STRAIGHT PIN | *10 | TRANSFER DRAIN PLUG |
| *11 | TRANSFER DRIVEN PINION | *12 | TRANSFER OUTPUT SHAFT WASHER |
| *13 | TRANSFER GEAR NUT | *14 | O-RING |
| *15 | TRANSFER CASE | *16 | GASKET |
| *17 | WASHER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
