Components [12/2012 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

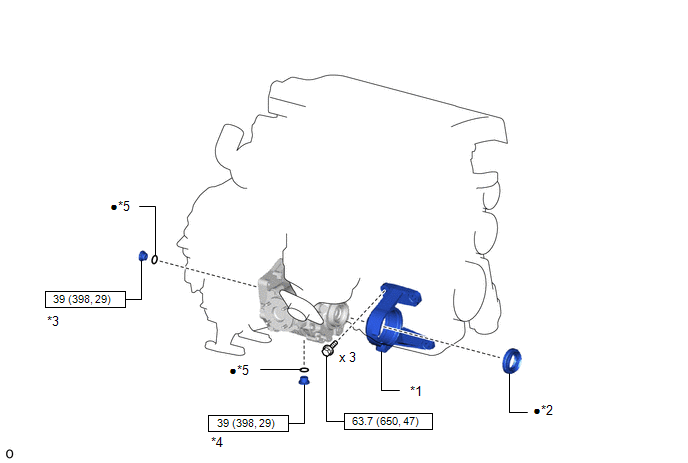

Fig 1: Transfer Case Front Oil Seal (For RH Side) Components With Torque Specifications
GTY362639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVE SHAFT BEARING BRACKET *2 TRANSFER CASE OIL SEAL RH
*3 NO. 2 TRANSFER CASE PLUG *4 TRANSFER DRAIN PLUG
*5 GASKET - -
Specified torque: N*m (kgf*cm, ft.*lbf) • Non-reusable part
