Removal [12/2012 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 6

  2. REMOVE DIFFERENTIAL LOCK SWITCH

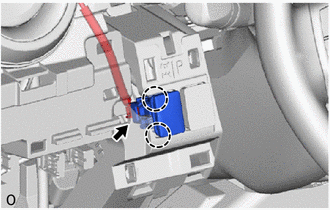

    1. Detach the 2 claws and remove the differential lock switch.
      GTY364759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
