Components [12/2012 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

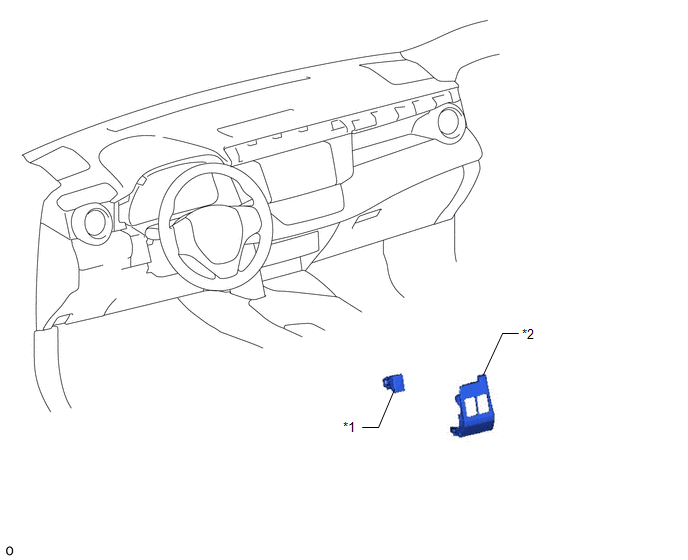

GTY367078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DIFFERENTIAL LOCK SWITCH *2 NO. 2 SWITCH HOLE BASE
