DTC P0617: Starter Relay Circuit High [08/2017 - ]: Wiring Diagram

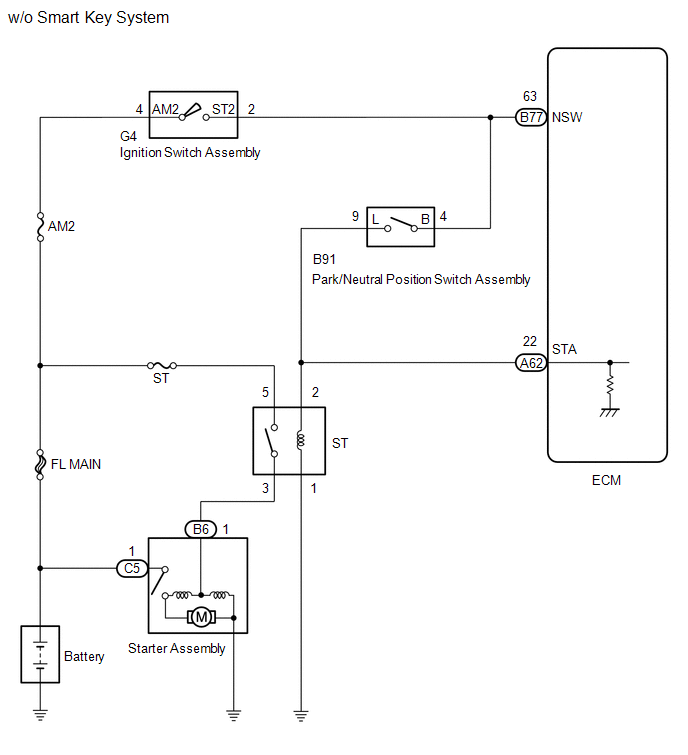

GTY741467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

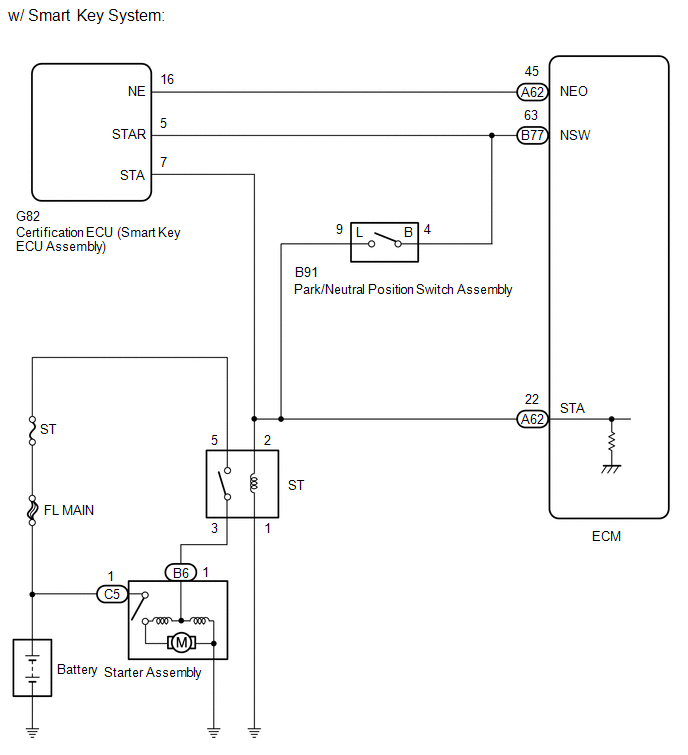

GTY769064

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
