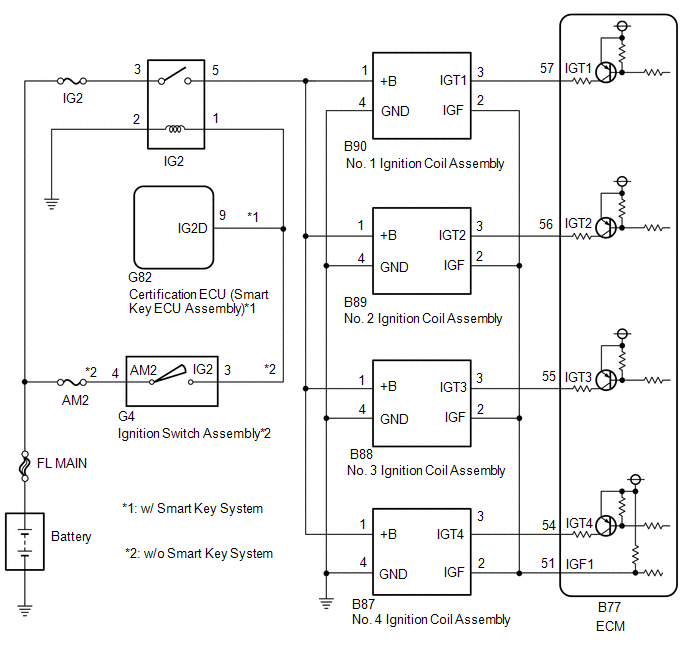

DTC P0351-P0354; Ignition Coil "A" Primary / Secondary Circuit [08/2017 - ]: Wiring Diagram

GTY757516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
