SFI System [2AR-FE] (Diagnostic Codes) (Except Hybrid) (1 Of 7)
>>
SFI System
>>
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [12/2012 - ]
>>

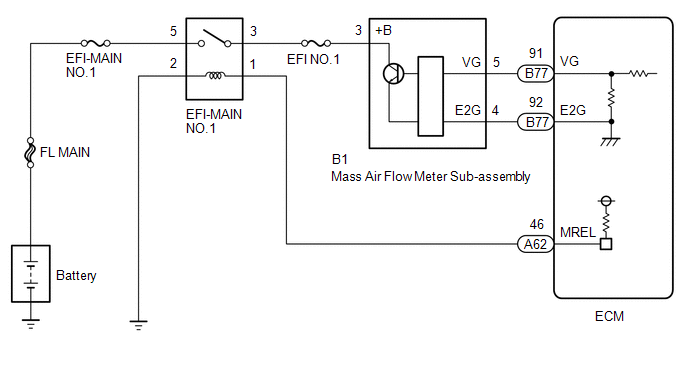

Wiring Diagram
DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input [12/2012 - ]: Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
