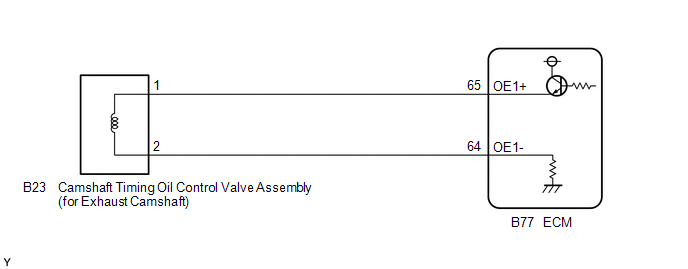

DTC P0013: Camshaft Position "B" Actuator Circuit / Open (Bank 1) [12/2012 - ]: Wiring Diagram

GTY376753

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
