Removal [12/2012 - ]: Procedure

  1. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Refer to REMOVAL [12/2012 - 10/2015] Refer to REMOVAL [10/2015 - ]

  2. REMOVE NO. 2 CONSOLE BOX MOUNTING BRACKET

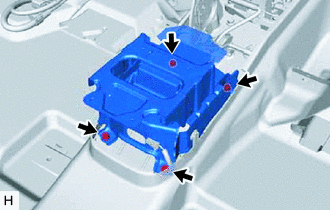

    1. Remove the 4 bolts and No. 2 console box mounting bracket.
      GTY363119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
    1. Disconnect the parking brake switch connector.

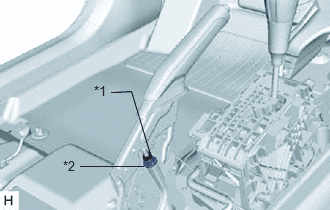

    2. Remove the lock nut and No. 1 cable adjusting nut.
      GTY384089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *2 No. 1 Cable Adjusting Nut

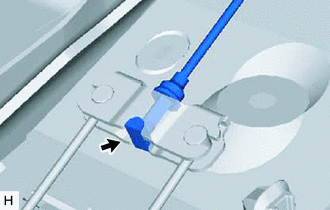

    3. Disconnect the No. 1 parking brake cable assembly from the parking brake equalizer.
      GTY363123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

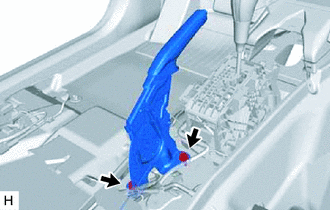

    4. Remove the 2 bolts and parking brake lever (with the No. 1 parking brake cable).
      GTY363124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

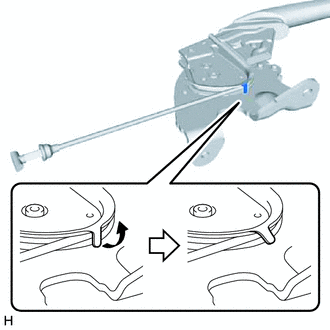

    1. Pull up the parking brake lever claw.
      GTY363106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 1 parking brake cable assembly from the parking brake lever.
      GTY363112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE PARKING BRAKE SWITCH ASSEMBLY

    See step  2
