Removal [12/2012 - ]: Procedure

Refer to REMOVAL [12/2012 - 10/2015] Refer to REMOVAL [10/2015 - ]

See step  2

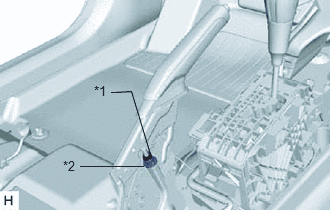

1. Loosen the lock nut and No. 1 cable adjusting nut to completely release the parking brake cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Lock Nut
   *2	No. 1 Cable Adjusting Nut

2. Disconnect the 3 cable ends and remove the equalizer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the cable clamp (labeled A) from the parking brake cable and vehicle body.
2. Remove the 2 casing cap bolts (labeled B) from the vehicle body.
3. Remove the 2 bolts (labeled C) from the vehicle body.
4. Remove the 2 bolts (labeled D) from the crossmember.
5. Remove the 2 bolts (labeled E) from the rear suspension crossmember.
6. Remove the 2 bolts (labeled F) from the trailing arms.
7. Disconnect the cables from the parking brake shoe levers and backing plates.
   1. Disconnect the cables from the levers.

      Refer to DISASSEMBLY [12/2012 - ]

   2. Remove the bolts and disconnect the cables from the backing plates.
