Parking Brake Cable
>>
Components [12/2012 - ]
>>
Illustration
Components [12/2012 - ]: Illustration

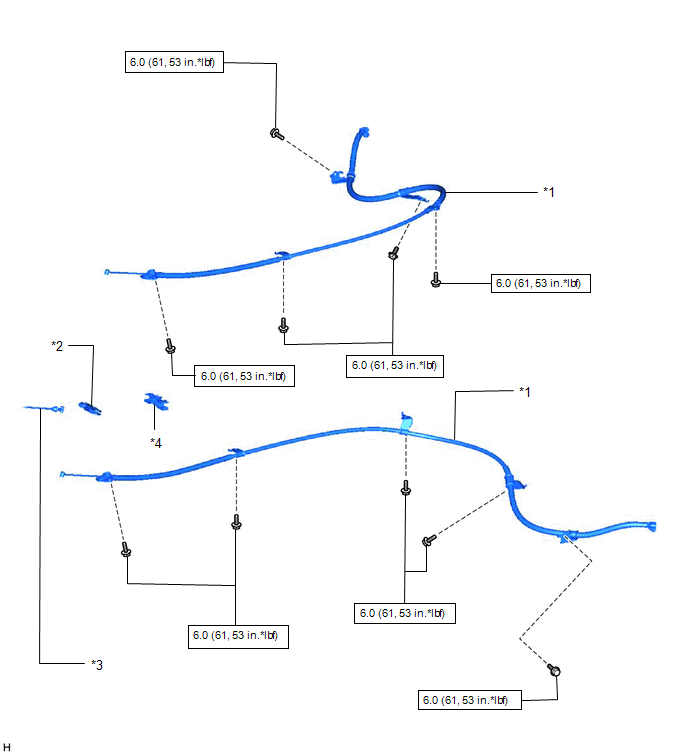

Fig 1: Parking Brake Cable Components With Torque Specifications [12/2012 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
PARKING BRAKE CABLE
*2
PARKING BRAKE EQUALIZER
*3
NO. 1 PARKING BRAKE CABLE
*4
CABLE CLAMP
Specified torque: N*m (kgf*cm, ft.lbf)
-
-
