Manual Shifting Test [12/2012 - ]

HINT:

• Using this test, it can be determined whether a problem is in an electrical circuit or if it is a mechanical problem in the transaxle.
• If any abnormalities are found in the following test, the problem is in the transaxle itself.

1. Disconnect the harness connector from the wiring harness connector.

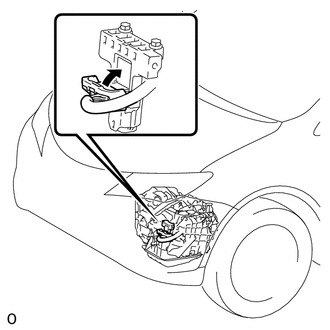

   Fig 1: Locating Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   It is possible to deactivate the electrical shift control by disconnecting the harness connector. The gears can then be changed mechanically with the shift lever.

2. Drive with the harness connector disconnected. Move the shift lever to each position to check whether the gear changes as shown in the table below.

   Shift Lever Position	Gear
   P	P
   R	R
   D	3rd No Shift (Gears will not change)

3. Connect the connector of the harness connector.
4. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [12/2012 - ]

   Powertrain > Engine and ECT > Clear DTCs
