Components [12/2012 - 08/2016]: Illustration
WARNING: This page is about a different variant/trim than selected.

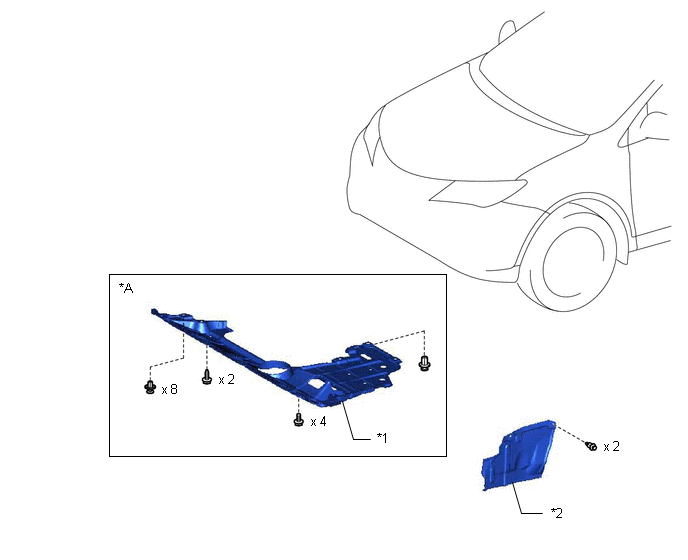

| *A | for Full Cover Type | - | - |
| *1 | NO. 1 ENGINE UNDER COVER | *2 | REAR ENGINE UNDER COVER LH |
Fig 1: Valve Body Assembly Replacement Components With Torque Specifications [12/2012 - 08/2016] (2 Of 4)
| *1 | AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY | *2 | FRONT SUSPENSION MEMBER REINFORCEMENT LH |
| *3 | MANUAL VALVE | *4 | TRANSAXLE CASE GASKET |
| *5 | TRANSMISSION VALVE BODY ASSEMBLY | *6 | VALVE BODY OIL STRAINER ASSEMBLY |
| *7 | AUTOMATIC TRANSAXLE OIL PAN GASKET | *8 | TRANSMISSION OIL CLEANER MAGNET |
| *9 | OVERFLOW PLUG | *10 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *11 | O-RING | *12 | GASKET |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | * | Precoated part |
Fig 1: Valve Body Assembly Replacement Components With Torque Specifications [12/2012 - 08/2016] (3 Of 4)
| *1 | TRANSMISSION REVOLUTION SENSOR | *2 | TRANSMISSION WIRE |
| *3 | LOCK PLATE | *4 | TRANSMISSION VALVE BODY ASSEMBLY |
| *5 | O-RING | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 1: Valve Body Assembly Replacement Components With Torque Specifications [12/2012 - 08/2016] (4 Of 4)
| *1 | SHIFT SOLENOID VALVE SL | *2 | SHIFT SOLENOID VALVE SL1 |
| *3 | SHIFT SOLENOID VALVE SL2 | *4 | SHIFT SOLENOID VALVE SL3 |
| *5 | SHIFT SOLENOID VALVE SL4 | *6 | SHIFT SOLENOID VALVE SLT |
| *7 | SHIFT SOLENOID VALVE SLU | *8 | NO. 4 SOLENOID LOCK PLATE |
| *9 | NO. 3 SOLENOID LOCK PLATE | *10 | NO. 2 SOLENOID LOCK PLATE |
| *11 | SOLENOID LOCK PLATE | *12 | CLAMP |
| Specified torque: N*m (kgf*cm, ft.*lbf) | Toyota Genuine ATF WS |
