Components [12/2012 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

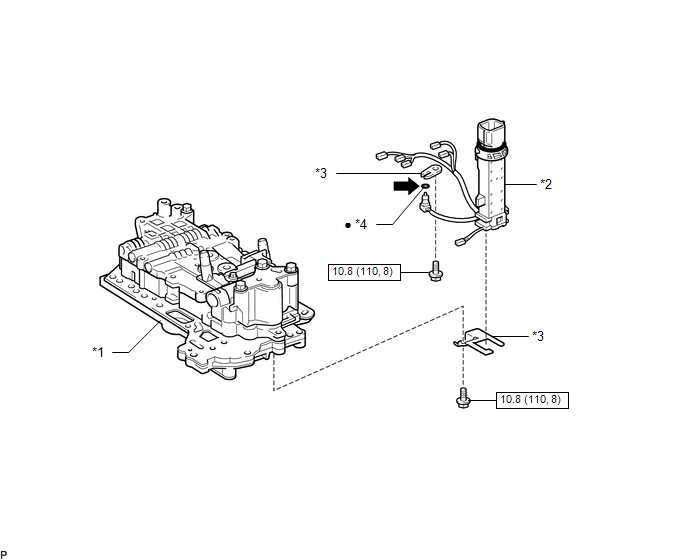

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY748019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION VALVE BODY ASSEMBLY *2 TRANSMISSION WIRE
*3 LOCK PLATE *4 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
