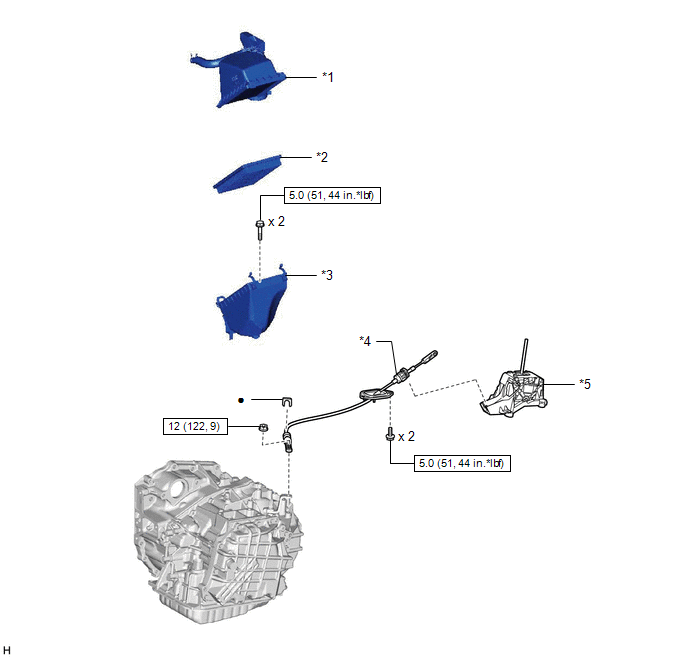

Components [12/2012 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
AIR CLEANER CAP SUB-ASSEMBLY |
*2 |
AIR CLEANER CASE SUB-ASSEMBLY |
| *3 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
*4 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 |
SHIFT LEVER ASSEMBLY |
- |
- |
 |
Specified torque: N*m (kgf*cm, ft,*lbf) |
• |
Non-reusable part |
