Removal [10/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE STEERING WHEEL BOSS LOWER COVER

    Refer to REMOVAL [10/2015 - ]

  2. REMOVE TRANSMISSION SHIFT SWITCH ASSEMBLY

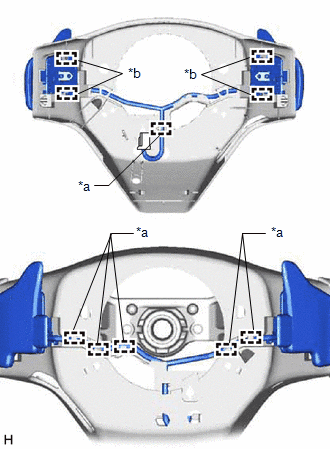

    GTY583773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Guide
    *b Pin
    1. Detach the 6 guides and disconnect the No. 1 switch wire from the steering wheel boss cover lower.
    2. Detach the 4 pins and remove the transmission shift switch assembly with No. 1 switch wire from the steering wheel boss lower cover.
    3. Remove the 2 cable ties.
      GTY601256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cable Tie
    4. Disconnect the 2 connectors from the 2 transmission shift switch assemblies, and remove the No. 1 switch wire.
