Inspection [10/2015 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.

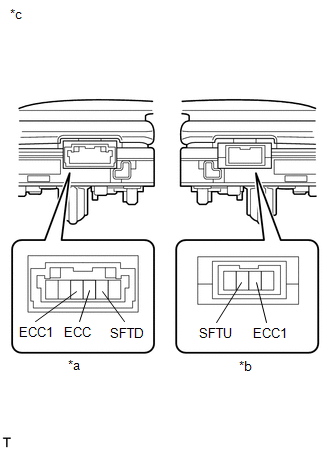

- INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY
*a LH *b RH *c Component without wire harness connected
(Transmission Shift Switch Assembly)- Measure the resistance according to the value(s) in the table below.
Standard Resistance
LHTester Connection Shift Position Specified Condition SFTD - ECC "-" shift paddle operated and held (down-shift) Below 2.5 Ω SFTD - ECC1 "-" shift paddle operated and held (down-shift) Below 2.5 Ω SFTD - ECC "-" shift paddle not operated (down-shift) 1 MΩ or higher SFTD - ECC1 "-" shift paddle not operated (down-shift) 1 MΩ or higher RHTester Connection Shift Position Specified Condition SFTU - ECC1 "+" shift paddle operated and held (up-shift) Below 2.5 Ω SFTU - ECC1 "+" shift paddle not operated (up-shift) 1 MΩ or higher If the result is not as specified, replace the transmission shift switch assembly.
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 1 SWITCH WIRE
- Connect the No. 1 switch wire connector to the transmission shift switch assembly.
- Disconnect the steering pad switch connector from the No. 1 switch wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition SFTD - ECC "-" shift paddle operated and held (down-shift) Below 2.5 Ω SFTU - ECC "+" shift paddle operated and held (up-shift) Below 2.5 Ω SFTD - ECC "-" shift paddle not operated (down-shift) 1 MΩ or higher SFTU - ECC "+" shift paddle not operated (up-shift) 1 MΩ or higher *a Component without wire harness connected
(No. 1 Switch Wire)If the result is not as specified, replace the No. 1 switch wire.
