Removal [12/2012 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2012 - 10/2015] or REMOVAL [10/2015 - ]

  2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.

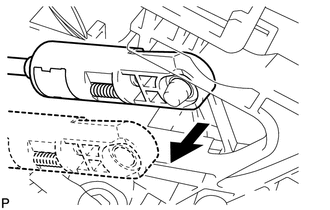

    2. Disconnect the end of the transmission control cable assembly from the shift lever assembly.
      GTY373817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

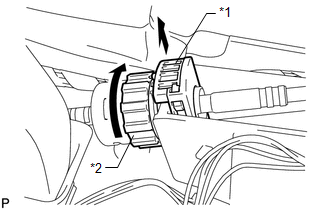

    3. Pull out the stopper of the transmission control cable assembly.
      GTY370074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
      *2 Nut
    4. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable assembly from the shift lever assembly.
      NOTE:

      Do not over-rotate the nut as it will come off the internal spring and the transmission control cable assembly will not be reusable.

  3. REMOVE SHIFT LEVER ASSEMBLY

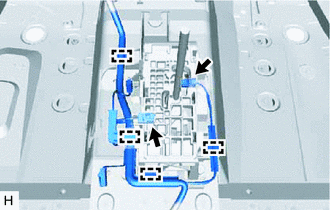

    1. Disconnect the 2 connectors and 4 clamps from the shift lever assembly.
      GTY381528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

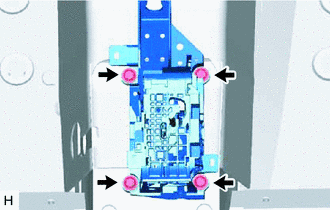

    2. Remove the 4 bolts and shift lever assembly.
      GTY363242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
