Disassembly [12/2012 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Detach the 2 claws and remove the shift lock release button cover from the upper console panel sub-assembly.

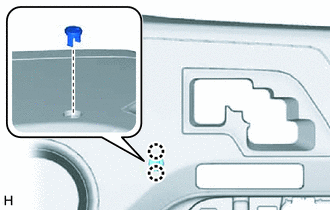

      GTY364400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE POSITION INDICATOR HOUSING

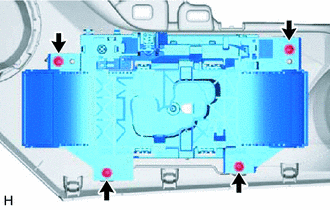

    GTY364223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and position indicator housing from the rear upper console panel sub-assembly.
  3. REMOVE CONTROL POSITION INDICATOR PLATE

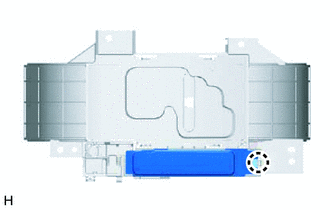

    GTY364398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the claw and remove the control position indicator plate.
  4. REMOVE POSITION INDICATOR LENS
    1. Detach the 4 claws and remove the position indicator lens.

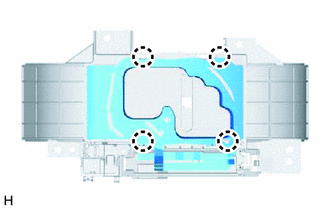

      GTY364399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE POSITION INDICATOR SLIDE COVER

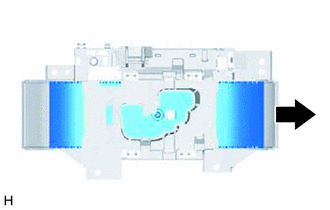

    GTY364409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the position indicator slide cover together with No. 2 position indicator slide cover from the position indicator housing.
  6. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
    GTY362752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 2 position indicator slide cover from the position indicator slide cover.
  7. REMOVE INDICATOR LIGHT
    1. Disconnect the connector.

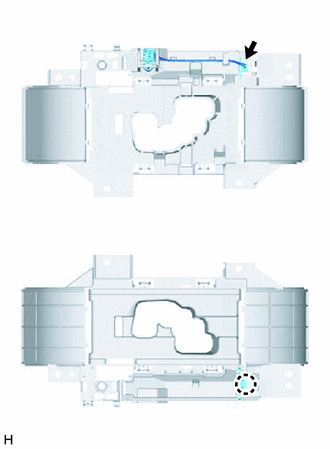

      GTY364408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a plastic bag, detach the claw and remove the indicator light from the position indicator housing.
  8. REMOVE SHIFT LOCK RELEASE BUTTON
    1. Detach the 2 claws and remove the shift lock release button and spring from the position indicator housing.

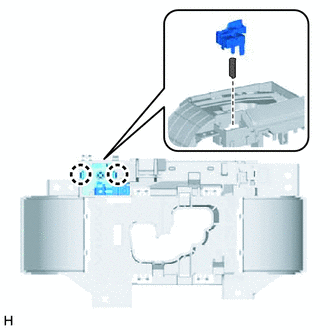

      GTY364402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
