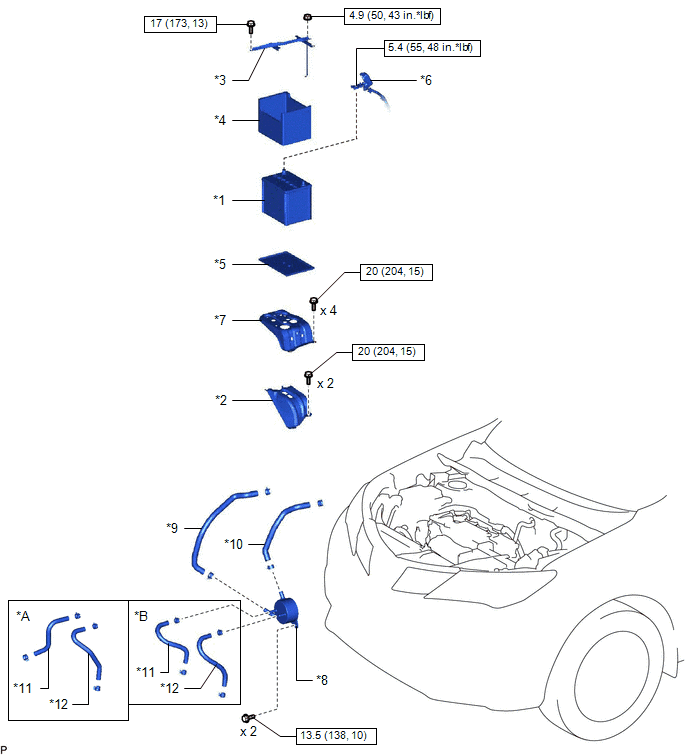

Components [08/2017 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *A | w/ Water Cooler | *B | w/o Water Cooler |
| *1 | BATTERY | *2 | BATTERY BRACKET REINFORCEMENT |
| *3 | BATTERY CLAMP SUB-ASSEMBLY | *4 | BATTERY INSULATOR |
| *5 | BATTERY TRAY | *6 | CABLE FROM POSITIVE BATTERY TERMINAL |
| *7 | FRONT BATTERY BRACKET | *8 | TRANSMISSION OIL COOLER |
| *9 | NO. 8 WATER BY-PASS HOSE | *10 | NO. 9 WATER BY-PASS HOSE |
| *11 | OIL COOLER INLET HOSE | *12 | OIL COOLER OUTLET HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
