Components [10/2015 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

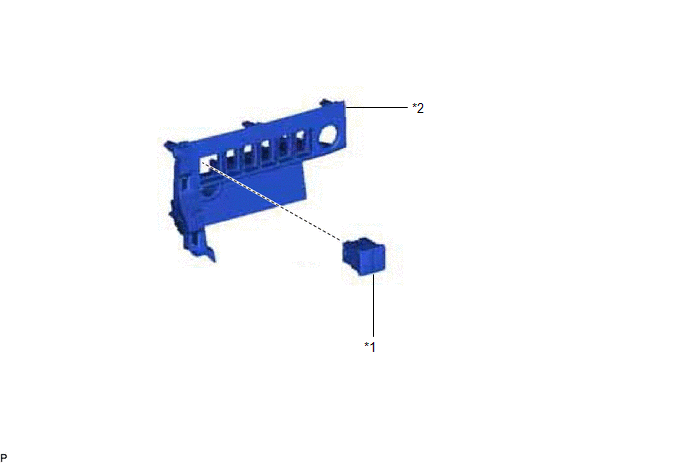

Fig 1: Combination Switch Replacement Components [10/2015 - ]
GTY608640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION SWITCH ASSEMBLY *2 LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
