Removal [12/2012 - 10/2015]: Procedure

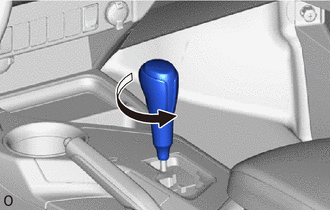

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.
      GTY384301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

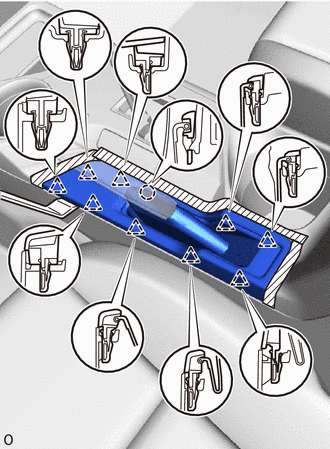

  2. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY
    1. Apply protective tape as shown in the illustration.
      GTY368685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using moulding remover B, detach the 9 clips and claw and remove the parking brake hole cover sub-assembly.

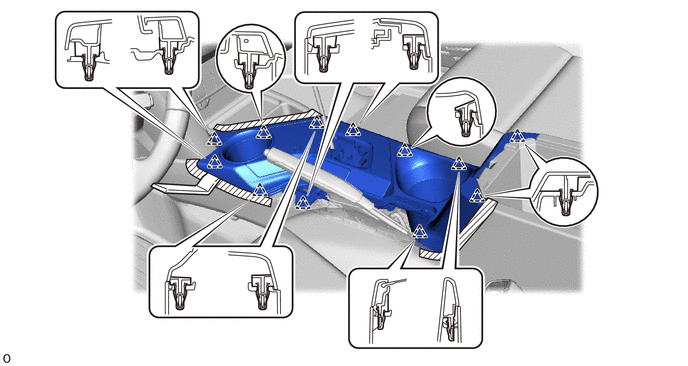

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Apply protective tape as shown in the illustration.
    2. Using moulding remover B, detach the 12 clips and remove the upper console panel sub-assembly.
      GTY365850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape - -

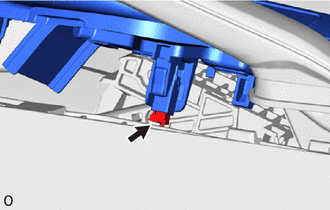

    3. Disconnect the connector.
      GTY384297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

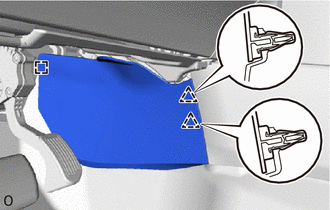

  4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH
    GTY380383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 clips and guide and remove the inner No. 1 instrument panel bracket cover LH.

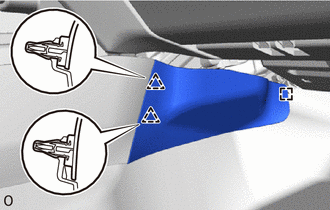

  5. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH
    GTY380387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 clips and guide and remove the inner No. 1 instrument panel bracket cover RH.
  6. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

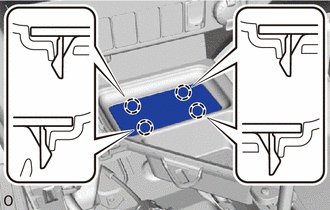

    1. Detach the 4 claws and remove the upper rear console panel sub-assembly.
      GTY384298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

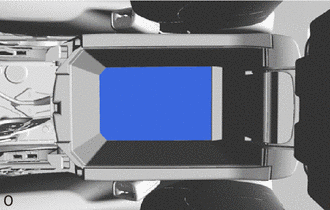

  7. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY380368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

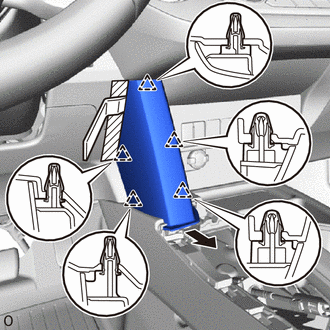

  8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
    1. Apply protective tape as shown in the illustration.
      GTY381068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape.
    2. Using moulding remover B, detach the 5 clips and remove the lower center instrument panel finish panel.

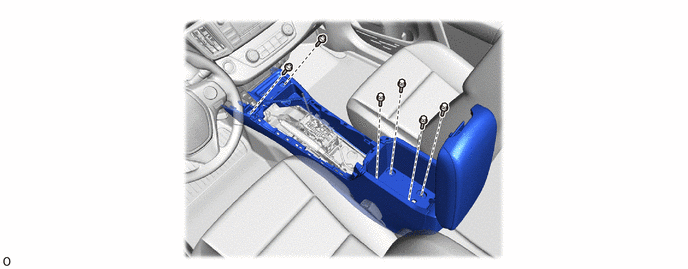

  9. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY
    1. Remove the 2 screws.
    2. Remove the 4 bolts and rear console box sub-assembly.
      GTY380360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
