Position Of Parts In Engine Compartment (Before Oct. 2015 Production (2 Of 2): Notes

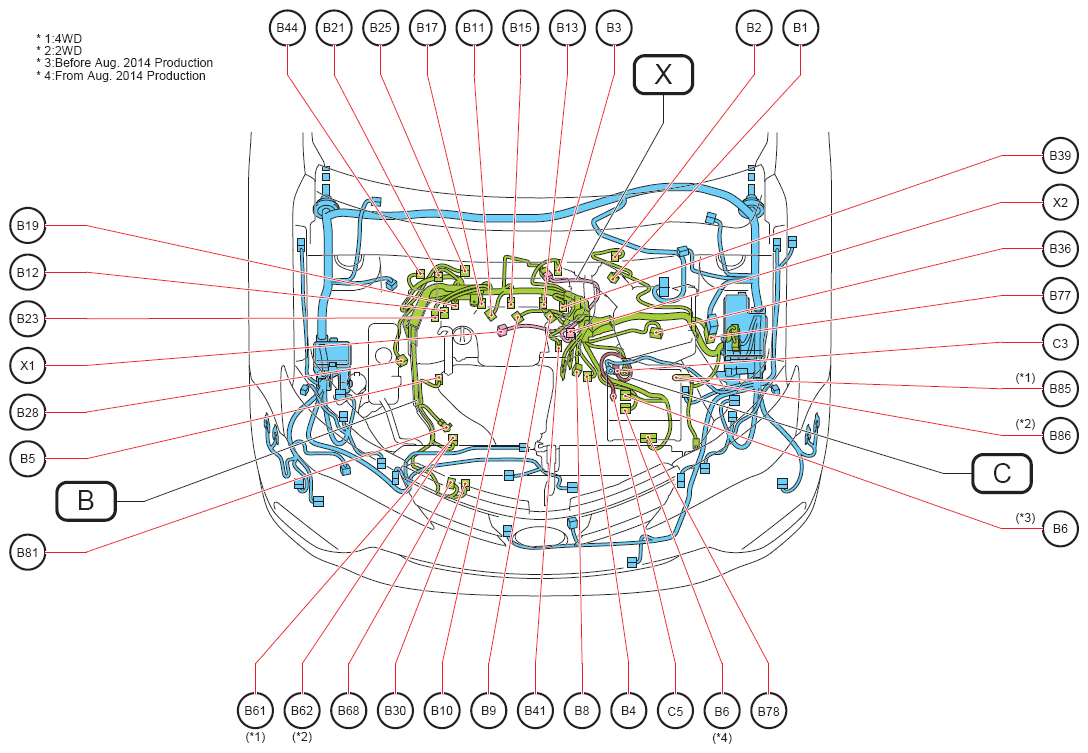

Fig 1: Position Of Parts In Engine Compartment (Before Oct. 2015 Production
G12217390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
