Meter / Gauge / Display - Diagnostic Codes & Circuit Tests - (Except Hybrid)
>>
Meter / Gauge System
>>
DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [12/2012 - 10/2015]
>>

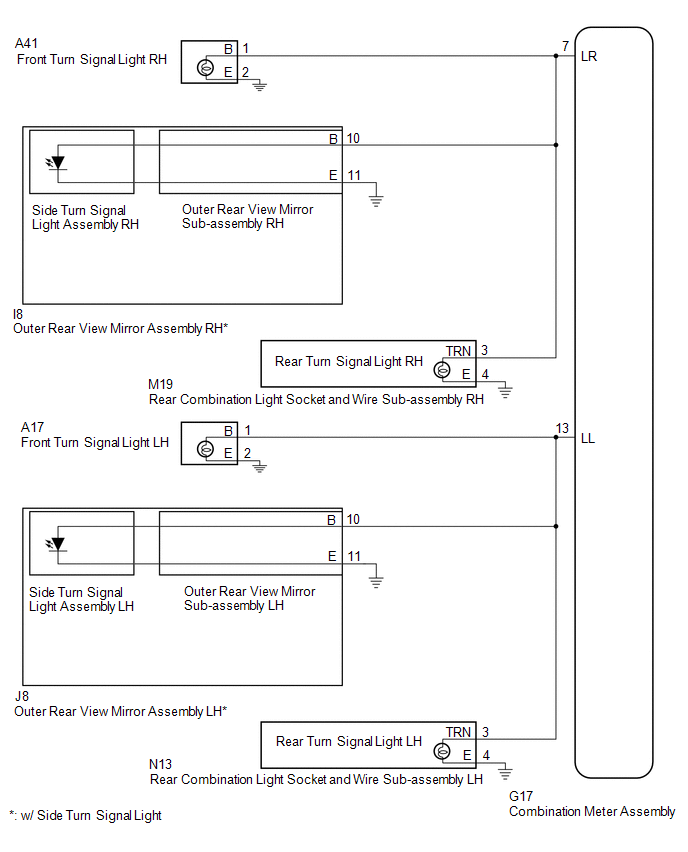

Wiring Diagram
DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [12/2012 - 10/2015]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
