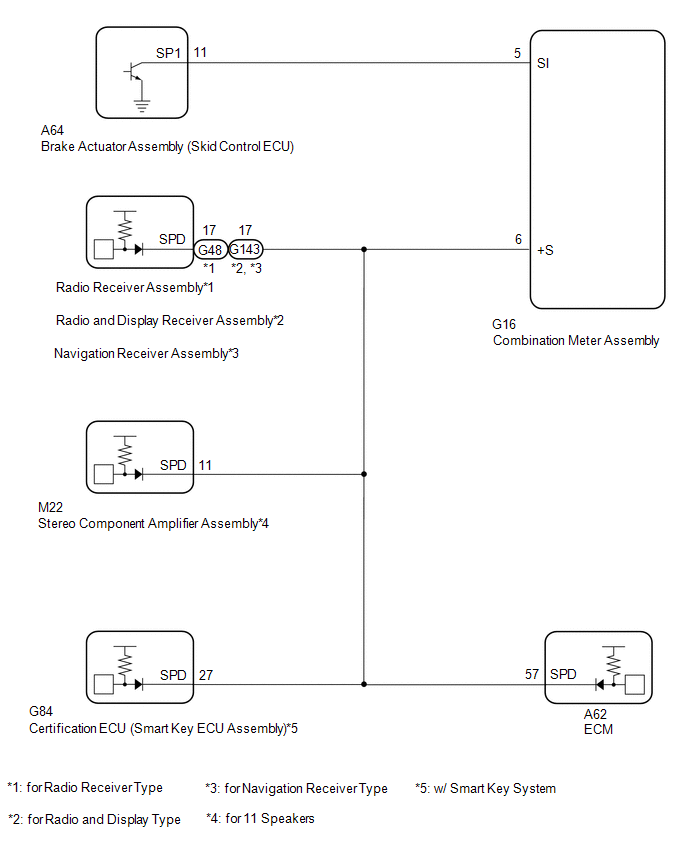

Speed Signal Circuit [11/2013 - 10/2015]: Wiring Diagram

GTY437083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
