Removal [12/2012 - 08/2016]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the driver seat.

    Refer to REMOVAL [12/2012 - 08/2016]

  2. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

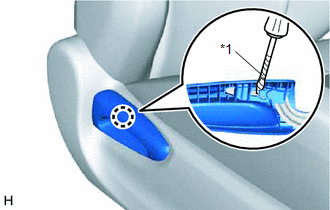

    1. Using a screwdriver, detach the claw to remove the reclining adjuster release handle RH.
      GTY383059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE FRONT SEAT CUSHION SHIELD RH
    1. Detach the 2 clips and claw.
      GTY365945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

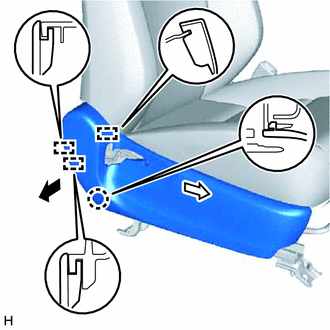

    2. Detach the claw and 3 guides to remove the front seat cushion shield RH as indicated by the arrows in the order shown in the illustration.
      GTY369059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      First
      Second
  4. REMOVE FRONT INNER SEAT CUSHION SHIELD RH
    1. Detach the 2 claws and 3 guides to remove the front inner seat cushion shield RH as indicated by the arrows in the order shown in the illustration.
      GTY361794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      First
      Second
  5. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

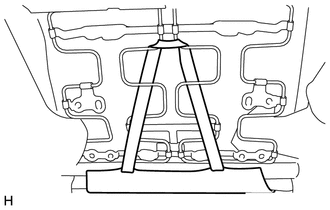

    1. Disconnect the rubber band.
      GTY365943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Front Seat Side Airbag:
      GTY361005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Clamp
      *2 Connector Clamp
      1. Detach the 4 wire clamps and connector clamp to disconnect the wire harness of the front seat side airbag.
      2. Detach the fastener to disconnect the wire harness of the front seat airbag assembly RH.
        GTY375782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Fastener
    3. Remove the screw to disconnect the wire harness of the front seat inner belt assembly.
      GTY374843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. GTY365950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the connector clamp and wire harness clamp.

    5. Disconnect the connector.
    6. Detach the 2 hooks.
      GTY381952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 4 bolts and separate type front seatback assembly.
      GTY365948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Detach the 4 claws to remove the 2 front seat headrest supports.
      GTY367288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 5 hog rings.
      GTY381953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 hog rings.
      GTY367289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Open the 2 fasteners.
      GTY380714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. GTY365995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 nuts.

    5. Pull the separate type front seatback cover bracket from the separate type front seatback pad.
    6. Remove the 8 hog rings and separate type front seatback cover from the separate type front seatback pad.
      GTY365994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SEATBACK HEATER ASSEMBLY RH
    1. Cut off the 14 tack pins which fasten the front seatback heater assembly RH, and then remove the front seatback heater assembly RH from the separate type front seatback cover.
      GTY377207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the separate type front seatback cover and front seatback heater assembly RH.
