Installation [12/2012 - 08/2016]: Procedure

1. Set the front seat cushion heater assembly RH on the separate type front seat cushion cover.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Using a tacker, install the front seat cushion heater assembly RH to the separate type front seat cushion cover with 20 new tack pins as shown in the illustration.

   NOTE:

   Do not substitute other metal parts for tack pins.

1. Set the separate type front seat cushion cover in place.

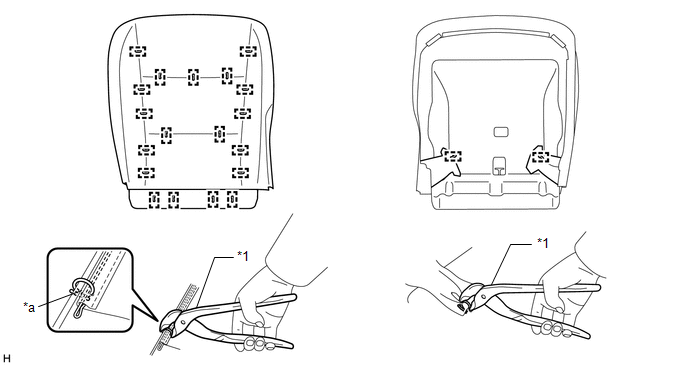

2. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 21 new hog rings as shown in the illustration.
   NOTE:

   • Be careful not to damage the separate type front seat cushion cover.
   • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

   HINT:

   Install the hog rings at the cutouts if they are there.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hog Ring Pliers	-	-
   *a	Cutout	-	-

1. Attach the 11 hooks to install the separate type front seat cushion cover with pad.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  4

See step  5

See step  6

See step  7

HINT:

Use the same procedure as for the driver seat.

Refer to INSTALLATION [12/2012 - 08/2016]

Refer to OPERATION CHECK [12/2012 - ]
