Components [12/2012 - 08/2016]: Illustration

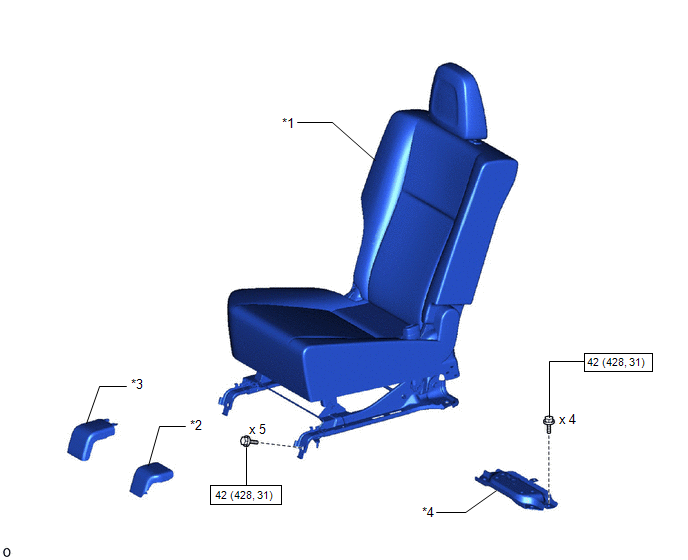

Fig 1: Rear Seat Assembly (For RH Side) Components With Torque Specifications (1 Of 3) [12/2012 - 08/2016]
| Callout | Description | Callout | Description |
| *1 | REAR SEAT ASSEMBLY RH | *2 | REAR SEAT FRONT BRACKET COVER RH |
| *3 | REAR SEAT NO. 2 LEG SIDE COVER | *4 | SEAT LEG BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

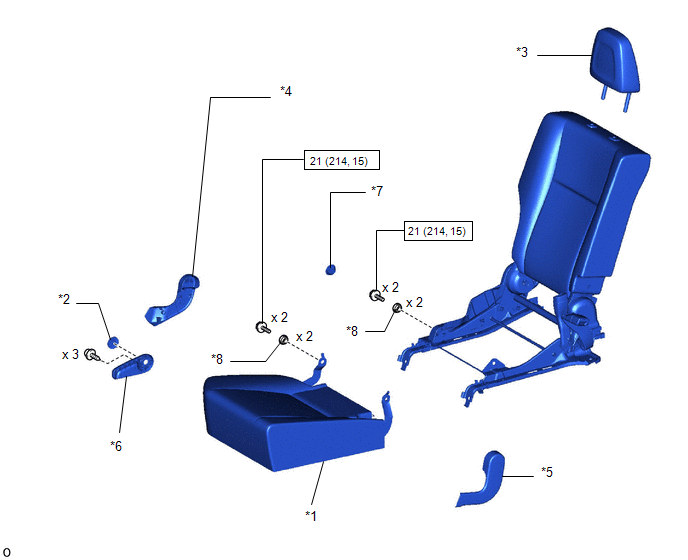

Fig 1: Rear Seat Assembly (For RH Side) Components With Torque Specifications (2 Of 3) [12/2012 - 08/2016]
| Callout | Description | Callout | Description |
| *1 | NO. 1 SEAT CUSHION ASSEMBLY RH | *2 | REAR SEAT COVER CAP RH |
| *3 | REAR SEAT HEADREST ASSEMBLY | *4 | REAR SEAT NO. 1 CUSHION HINGE COVER |
| *5 | REAR SEAT NO. 2 CUSHION HINGE COVER | *6 | RECLINING ADJUSTER RELEASE HANDLE RH |
| *7 | REAR SEATBACK COVER | *8 | BUSH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

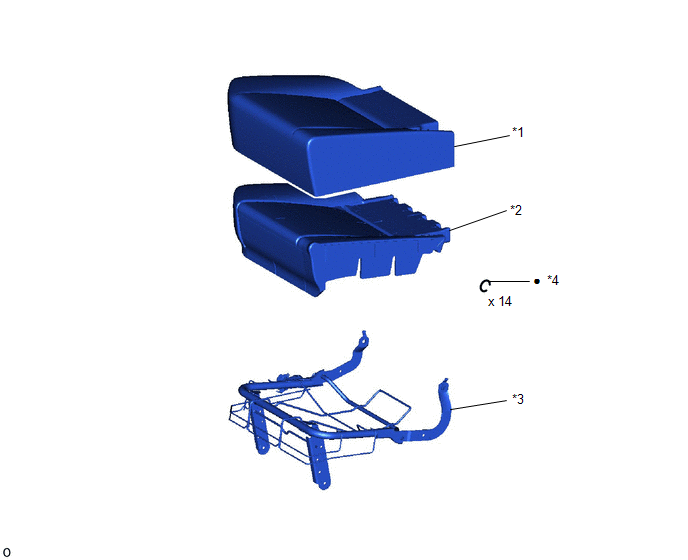

| *1 | SEPARATE TYPE REAR SEAT CUSHION COVER | *2 | REAR SEAT CUSHION PAD RH |
| *3 | REAR SEAT CUSHION FRAME SUB-ASSEMBLY RH | *4 | HOG RING |
| • | Non-reusable part | - | - |

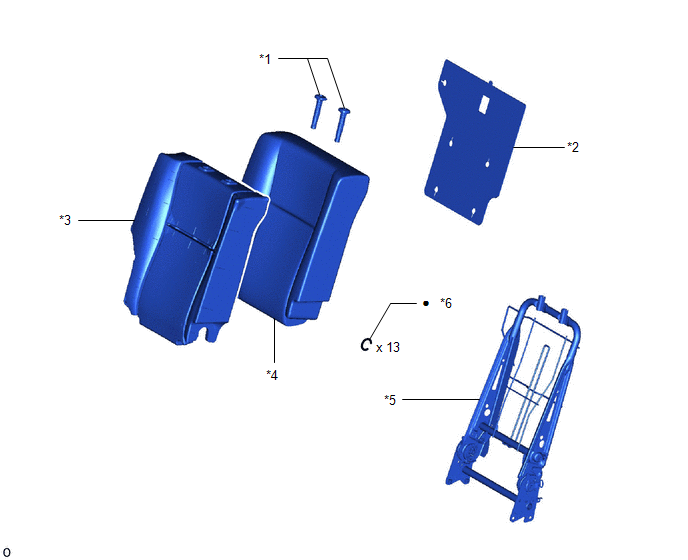

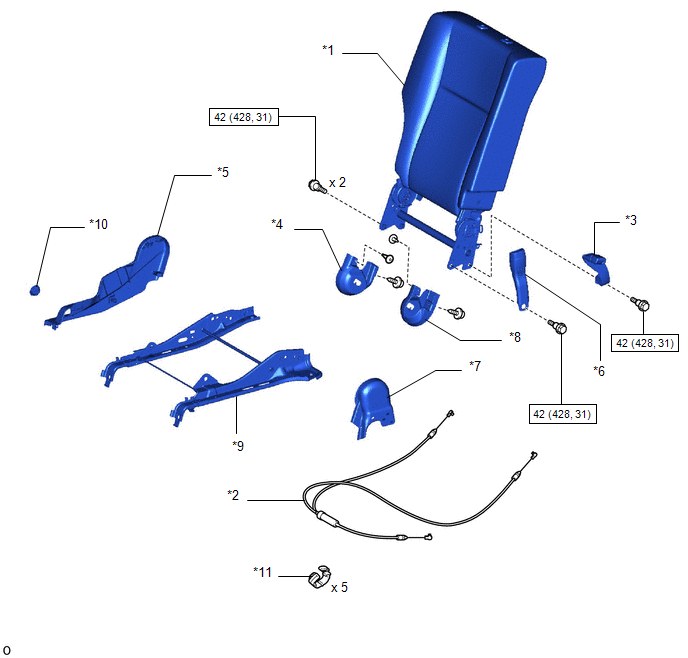

Fig 1: Rear Seat Assembly (For RH Side) Components With Torque Specifications (3 Of 3) [12/2012 - 08/2016]
| Callout | Description | Callout | Description |
| *1 | NO. 1 SEATBACK ASSEMBLY RH | *2 | NO. 2 SEAT ADJUSTER CONTROL CABLE ASSEMBLY |
| *3 | REAR SEAT CENTER LAP TYPE BELT ASSEMBLY RH | *4 | REAR SEAT COVER |
| *5 | REAR SEAT CUSHION MOULDING RH | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | REAR SEAT REAR CUSHION MOULDING RH | *8 | REAR SEATBACK COVER RH |
| *9 | REAR SEAT RECLINING ADJUSTER RH | *10 | REAR SEATBACK COVER |
| *11 | CLAMP | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
