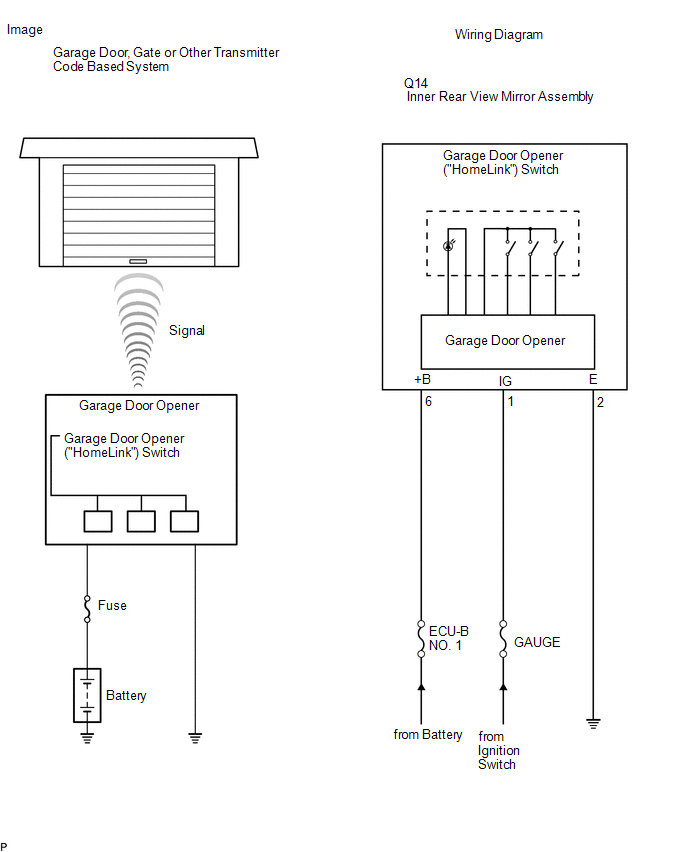

Home >> Toyota >> 2016 >> RAV4 LE, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Garage Door Opener (Inspection & Registration) - (Except Hybrid) >> Garage Door Opener System >> System Diagram [10/2015 - ] >> System Diagram [10/2015 - ]
